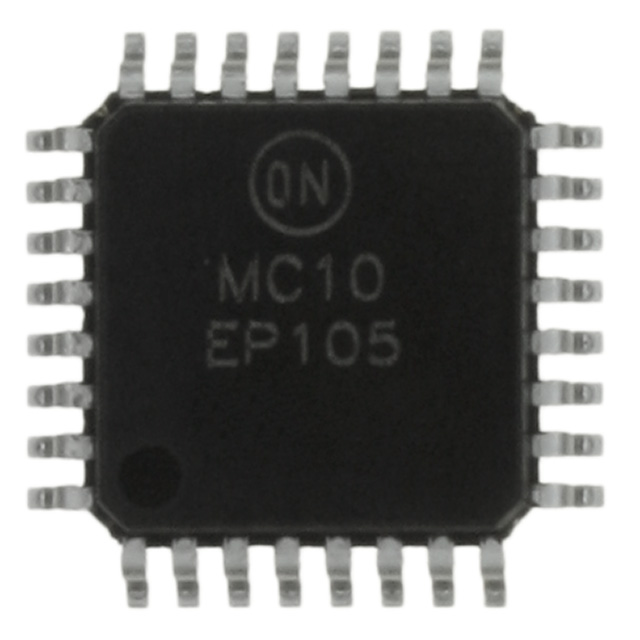

MC10EP105MNG

Number of Gates : 4
Mounting Style : SMD/SMT
Maximum Operating Temperature : + 85 C
Product : MUX Gates
Logic Family : ECL
High Level Output Current : - 50 mA
Low Level Output Current : 50 mA
Number of Lines (Input / Output) : 4-IN / 2
Propagation Delay Time : 0.35 ns at 3 V to 5.5 V
Supply Voltage - Max : +/- 5.5 V
Supply Voltage - Min : +/- 3 V
Package / Case : QFN EP
Packaging : Rail


Parameters:

Technical/Catalog Information	MC10EP105MNG
Vendor	ON Semiconductor
Category	Integrated Circuits (ICs)
Number of Circuits	4 - Quad
Logic Type	2 Input AND/NAND Gate
Current - Output High, Low	-
Output Type	Differential
Schmitt Trigger Input	No
Voltage - Supply	3 V ~ 5.5 V
Operating Temperature	-40°C ~ 85°C
Number of Inputs	2
Mounting Type	Surface Mount
Package / Case	32-QFN
Packaging	Tube
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	MC10EP105MNG MC10EP105MNG
