Features:

•275 ps Typical Propagation Delay
•Maximum Frequency >3 GHz Typical
•PECL Mode Operating Range: VCC= 3.0 V to 5.5 V with VEE= 0 V
•NECL Mode Operating Range: VCC= 0 V with VEE= 3.0 V to 5.5 V
•Open Input Default State
•Safety Clamp on Inputs


Pinout

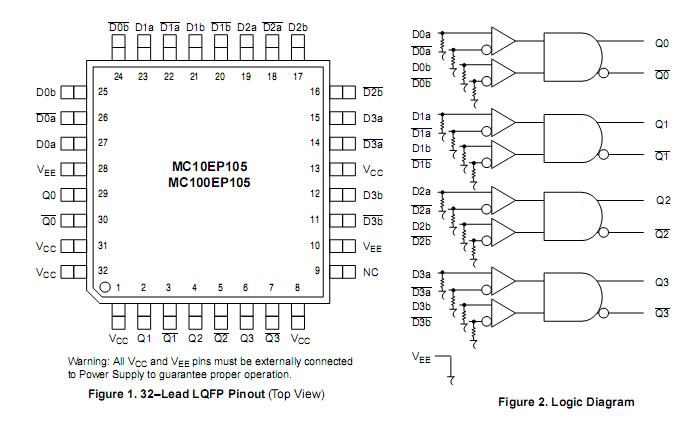

Connection Diagram


Specifications

Symbol
Parameter
Condition 1
Condition 2
Rating
Unit
VCC PECL Mode Power Supply VEE= 0 V   6 V
VEE NECL Mode Power Supply VCC= 0 V   -6 V
VI PECL Mode Input Voltage
NECL Mode Input Voltage		 VEE= 0 V
VCC= 0 V

VIVCC

VIVEE

 6
-6		 V
V
IOUT Output Current Continuous
Surge		   50
100		 mA
mA
IBB VBBSink/Source     ±0.5 mA
TA Operating Temperature Range     -40 to +85
Tstg Storage Temperature Range     -65 to+150
0JA Thermal Resistance (Junction-to-Ambient) 0 LFPM
500 LFPM		 32 LQFP
32 LQFP		 80
55		 /W
/W
0JC Thermal Resistance (Junction-to-Case) std bd 32 LQFP 12 to 17 /W
Tsol Wave Solder < 2 to 3sec@248°C   265



Description

The MC10/100EP105 is a quad 2input differential AND/NAND gate. Each gate is functionally equivalent to the EP05 and LVEL05 devices. With AC performance much faster than the LVEL05 device, the EP105 is ideal for applications requiring the fastest AC performance available.

The 100 Series contains temperature compensation.
