MC10EP05

Features: •220 ps Typical Propagation Delay•Maximum Frequency > 3 GHz Typical•PECL Mode Operating Range: VCC = 3.0 V to 5.5 Vwith VEE = 0 V•NECL Mode Operating Range: VCC = 0 Vwith VEE = −3.0 V to −5.5 V•Open Input Default State•Safety Clamp on In...

product image

MC10EP05 Picture
See larger image
SeekIC No. : 004415013 Detail

MC10EP05: Features: •220 ps Typical Propagation Delay•Maximum Frequency > 3 GHz Typical•PECL Mode Operating Range: VCC = 3.0 V to 5.5 Vwith VEE = 0 V•NECL Mode Operating Range: VCC ...

MC10EP05 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC10EP05
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•220 ps Typical Propagation Delay
•Maximum Frequency > 3 GHz Typical
•PECL Mode Operating Range: VCC = 3.0 V to 5.5 Vwith VEE = 0 V
•NECL Mode Operating Range: VCC = 0 Vwith VEE = −3.0 V to −5.5 V
•Open Input Default State
•Safety Clamp on Inputs
•Q Output Will Default LOW with Inputs Open or at VEE
•Pb−Free Package is Available


Pinout

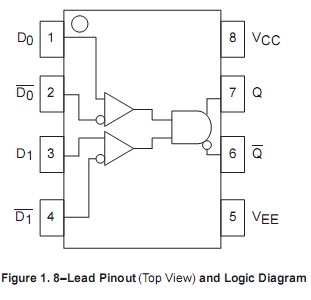

Connection Diagram Connection Diagram


Specifications

Symbol
Parameter
Condition 1
Condition 2
Rating
Unit
VCC
PECL Mode Power Supply
VEE= 0 V

6
V
VEE
NECL Mode Power Supply

VCC= 0 V

−6
V
VI PECL Mode Input Voltage
NECL Mode Input Voltage		 VEE= 0 V
VCC= 0 V


VIVCC

VIVEE

 6
−6		 V
V
IOUT Output Current Continuous
Surge		   50
100		 mA
mA
TA Operating Temperature Range     −40 to +85
Tsty Storage Temperature Range     −65 to +150
JA Thermal Resistance (Junction to Ambient) 0 lfpm
500 lfpm		 LQFP−32
LQFP−32		 185
140		 /W
/W
JC Thermal Resistance (Junction to Case) Standard Board
LQFP−32		 41 to 44 W
Tsol Wave Solder <2 to 3 sec @ 248°C   265



Description

The MC10EP05 is a 2input differential AND/NAND gate. The device is functionally equivalent to the EL05 and LVEL05 devices. With AC performance much faster than the LVEL05 device, the MC10EP05 is ideal for applications requiring the fastest AC performance available.

The 100 Series contains temperature compensation.
