Features:

· 2.6ns Typical Propagation Delay
·Differential ECL Inputs
· Small Outline SOIC Package
· 24mA TTL Outputs
· Flow Through Pinouts


Pinout

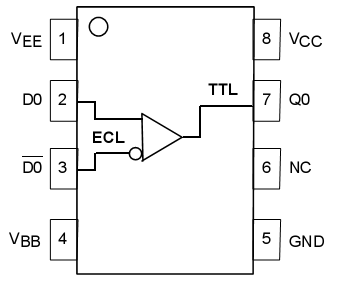

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VCC
 DC Supply Voltage (Referenced to GND, VEE= 5.2)
7.0
V
VEE
 DC Supply Voltage (Referenced to GND, VCC = 5.0)
8.0
V
VIN
 Input Voltage
0 to VCC
V
IOUT
 Current Applied to Output in Low Output State Continuou
Surg
50
100
mA
TA
 Operating Temperature Range (In Free-Air)
40 to 85
TSTG
 Storage Temperature Range
55 to +150
` Maximum Ratings are those values beyond which damage to the device may occur. Functional operation should be restricted to the Recommended Operating Conditions.


Description

The MC10ELT/100ELT25 is a differential ECL to TTL translator. Because ECL levels are used a +5V, -5.2V (or -4.5V) and ground are required. The small outline 8-lead SOIC package and the single gate of the ELT25 makes MC10ELT/100ELT25 ideal for those applications where space, performance and low power are at a premium. Because the mature MOSAIC 1.5 process is used, low cost can be added to the list of features.

The VBBoutput of MC10ELT/100ELT25 allows the ELT25 to also be used in a single-ended input mode. In this mode the VBB output is tied to the IN input for a non-inverting buffer or the IN input for an inverting buffer. If used the VBB pin should be bypassed to ground via a 0.01F capacitor.

The ELT25 is available in both ECL standards: the 10ELT is compatible with MECL 10H logic levels while the 100ELT is compatible with ECL 100K logic levels.
