MC10ELT21D

Translation - Voltage Levels 5V Diff PECL to TTL

product image

MC10ELT21D Picture
See larger image
SeekIC No. : 00451245 Detail

MC10ELT21D: Translation - Voltage Levels 5V Diff PECL to TTL

MC10ELT21D Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC10ELT21D
Mfg:
ON Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Type : PECL to TTL Propagation Delay Time : 5.5 ns
Supply Voltage - Max : 5.25 V Supply Voltage - Min : 4.75 V
Maximum Operating Temperature : + 85 C Mounting Style : SMD/SMT
Package / Case : SOIC-8

Description

Supply Current :
Maximum Operating Temperature : + 85 C
Mounting Style : SMD/SMT
Package / Case : SOIC-8
Propagation Delay Time : 5.5 ns
Supply Voltage - Min : 4.75 V
Supply Voltage - Max : 5.25 V
Type : PECL to TTL


Features:

· 3.5ns Typical Propagation Delay
·Differential PECL Inputs
· Small Outline SOIC Package
· 24mA TTL Output
· Flow Through Pinouts

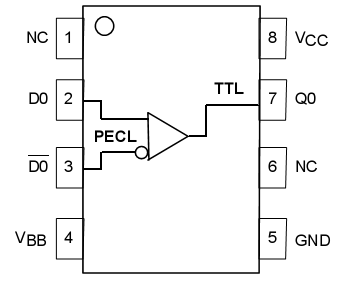

Pinout

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VCC
 DC Supply Voltage (Referenced to GND)
7.0
V
TA
 Operating Temperature Range (In Free-Air)
40 to 85
TSTG
 Storage Temperature Range
55 to +150

` Maximum Ratings are those values beyond which damage to the device may occur.  Functional operation should be restricted to the






Description

The MC10ELT/100ELT21 is a differential PECL to TTL translator. Because PECL (Positive ECL) levels are used only +5V and ground are required.  The small outline 8-lead SOIC package and the single gate of the ELT21 makes MC10ELT/100ELT21 ideal for those applications where space, performance and low power are at a premium.  Because  the mature MOSAIC 1.5 process is used, low cost can be added to the list of features.

The VBB output allows the ELT21 to also be used in a single-ended input mode.  In MC10ELT/100ELT21 the VBB  output is tied to the IN input for a non-inverting buffer or the IN input for an inverting buffer.  If used the VBB pin should be bypassed to ground via a 0.01F capacitor.

The ELT21 is available in both ECL standards: the 10ELT is compatible with positive MECL 10H logic levels while the 100ELT is compatible with positive ECL 100K logic levels.




Parameters:

Technical/Catalog InformationMC10ELT21D
VendorON Semiconductor
CategoryIntegrated Circuits (ICs)
Package / Case8-SOIC
PackagingTube
Input TypePECL
Output TypeTTL
Supply Voltage4.75 V ~ 5.25 V
Data Rate-
Number of Channels1
Operating Temperature-40°C ~ 85°C
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names MC10ELT21D
MC10ELT21D
MC10ELT21DOS ND
MC10ELT21DOSND
MC10ELT21DOS
