MC10E160

Features: • Provides Odd-HIGH Parity of 12 Inputs• Shiftable Output Register with Hold• 900ps Max. D to Q/Q Output• Enable• Asynchronous Register Reset• Dual Clocks• Extended 100E VEE Range of 4.2V to 5.46V• 75k Input Pulldown ResistorsPinoutDescri...

product image

MC10E160 Picture
See larger image
SeekIC No. : 004414955 Detail

MC10E160: Features: • Provides Odd-HIGH Parity of 12 Inputs• Shiftable Output Register with Hold• 900ps Max. D to Q/Q Output• Enable• Asynchronous Register Reset• Dual Cloc...

MC10E160 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC10E160
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Provides Odd-HIGH Parity of 12 Inputs
• Shiftable Output Register with Hold
• 900ps Max. D to Q/Q Output
• Enable
• Asynchronous Register Reset
• Dual Clocks
• Extended 100E VEE Range of 4.2V to 5.46V
• 75k Input Pulldown Resistors

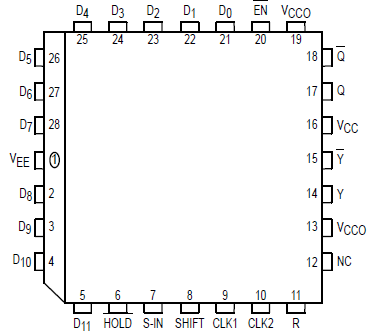

Pinout

Connection Diagram


Description

The MC10E/100E160 is a 12-bit parity generator/checker. The Q output is HIGH when an odd number of inputs are HIGH. A HIGH on the Enable input (EN ) forces the Q output LOW.

The MC10E/100E160 also features an output register. Multiplexers direct the register input, giving the option of holding present data by asserting HOLD LOW, or of shifting data in through the S-IN pin by asserting SHIFT HIGH. The output register MC10E/100E160 is clocked by a positive edge on CLK1 or CLK2 (or both). A HIGH on the reset pin (R) overrides to force the Y output LOW.
