Product Details

Description

Features:

• 350ps Typical Propagation Delay
• <100ps OutputtoOutput Skew
• Differential LVPECL Outputs
• Small Outline SOIC Package
• Flow Through Pinouts

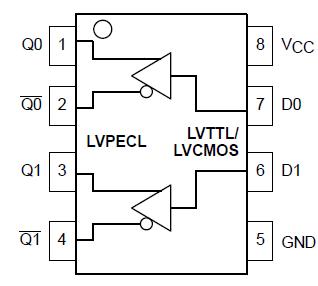

Pinout

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_CC	DC Supply Voltage (Referenced to GND)	7.0	V
V_IN	Input Voltage	0 to VCC	V
I_out	Current Applied to Output in Low Output State Continuous Surge	50 100	mA
T_A	Operating Temperature Range	40 to +85	°C
Tstg	Storage Temperature Range	55 to +150	°C

* Maximum Ratings are those values beyond which damage to the device may occur. Functional operation should be restricted to the Recommended Operating Conditions.

Description

The MC100LVELT22 is a dual LVTTL/LVCMOS to differential LVPECL translator. Because LVPECL (Low Voltage Positive ECL) levels are used, only +3.3V and ground are required. The small outline 8-lead SOIC package and the low skew, dual gate design of the LVELT22 makes MC100LVELT22 ideal for applications which require the translation of a clock and a data signal.
