Features:

• 390 ps Typical Propagation Delay
• Maximum Input Clock Frequency > 0.8 GHz Typical
• Operating Range VCC = 3.0 V to 3.6 V with GND = 0 V
• PNP TTL Input for Minimal Loading
• Q Output will Default HIGH with Input Open


Pinout

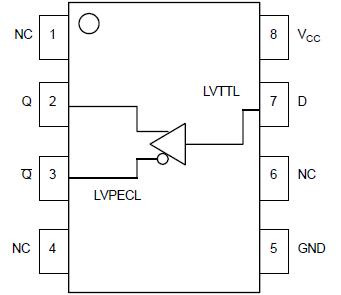

Connection Diagram


Specifications

Symbol Parameter Condition 1 Condition 2 Rating Unit
VCC Power Supply GND = 0 V   6 V
VI Input Voltage GND = 0 V   6 V
Iout Output Current Continuous
Surge		 VI VCC 50
100		 mA
TA Operating Temperature Range     −40 to +85 °C
Tstg Storage Temperature Range     −65 to +150 °C
JA Thermal Resistance (Junction−to−Ambient) 0 lfpm
500 lfpm		 SOIC−8
SOIC−8		 190
130		 °C/W
JC Thermal Resistance (Junction−to−Case) Standard Board SOIC−8 41 to 44 °C/W
JA Thermal Resistance (Junction−to−Ambient) 0 lfpm
500 lfpm		 TSSOP−8
TSSOP−8		 185
140		 °C/W
JC Thermal Resistance (Junction−to−Case) Standard Board TSSOP−8 41 to 44 °C/W
Tsol Wave Solder <2 to 3 sec @ 248°C   265 °C

Maximum ratings are those values beyond which device damage can occur. Maximum ratings applied to the device are individual stress limit values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied, damage may occur and reliability may be affected.




Description

The MC100LVELT20 is a 3.3 V TTL/CMOS to differential PECL translator. Because PECL (Positive ECL) levels are used, only +3.3 V and ground are required. The small outline SOIC−8 package and the single gate of the MC100LVELT20 makes it ideal for those applications where space, performance, and low power are at a premium.

The 100 Series contains temperature compensation.
