Number of Bits
:
Mounting Style
: SMD/SMT
Maximum Operating Temperature
: + 85 C
Number of Lines (Input / Output)
: 2 / 2
Package / Case
: SO-16
Packaging
: Tube
Product
: Decoders, Encoders, Multiplexers & Demultiplexers
Supply Voltage - Min
: - 3 V, + 3 V
Logic Family
: MC100L
Supply Voltage - Max
: - 3.8 V, + 3.8 V
Propagation Delay Time
: 0.62 ns at 3.3 V
Features: ` Differential Inputs and Outputs
` 20Lead SOIC Packaging
` 440ps Typical Propagation Delays
` Separate and Common Select
`Supports Both Standard and Low Voltage 100K ECL
`Internal Input Pulldowns

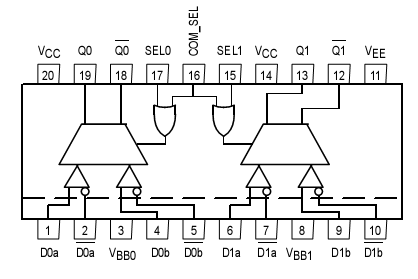

` >2000V ESD ProtectionPinout
DescriptionThe MC100LVEL56 is a dual, fully differential 2:1 multiplexer. The MC100EL56 is pin and functionally equivalent to the MC100LVEL56 but is specified for operation at the standard 100E ECL voltage supply. The differential data path makes the MC100LVEL56 ideal for multiplexing low skew clock or other skew sensitive signals. Multiple V pins are provided to
ease AC coupling input signals (for more information on AC coupling ECL signals refer to the interfacing section of the ECLinPS data book DL140/D).
The device features both individual and common select inputs to address both data path and random logic applications.
The differential inputs of MC100LVEL56 have special circuitry which ensures device stability under open input conditions. When both differential inputs are left open the D input will pull down to VEE , The D input will bias around VCC /2 forcing the Qoutput LOW.
Parameters: | Technical/Catalog Information | MC100LVEL56DW |
| Vendor | ON Semiconductor |
| Category | Integrated Circuits (ICs) |
| Circuit | 2 x 2:1 |
| Independent Circuits | 1 |
| Mounting Type | Surface Mount |
| Current - Output High, Low | - |
| Package / Case | 20-SOIC |
| Packaging | Tube |
| Type | Differential Digital Multiplexer |
| Voltage Supply Source | Dual Supply |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3 V ~ 3.8 V |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | MC100LVEL56DW
MC100LVEL56DW
MC100LVEL56DWOS ND
MC100LVEL56DWOSND
MC100LVEL56DWOS
|
MC100LVEL56DW Data Sheet
