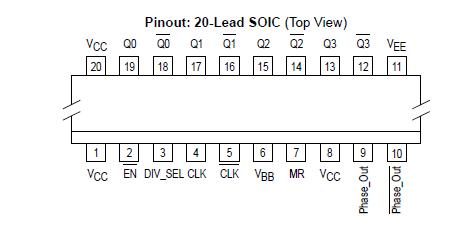

Features: • 50ps Output-to-Output Skew• Synchronous Enable/Disable• Master Reset for Synchronization• 75kW Internal Input Pulldown Resistors• >1500V ESD Protection• Low Voltage VEE Range of 3.0 to 3.8VPinoutDescriptionThe MC10/100EL34 is a low skew ÷2, ÷4, ÷8 cl...
MC100LVEL38: Features: • 50ps Output-to-Output Skew• Synchronous Enable/Disable• Master Reset for Synchronization• 75kW Internal Input Pulldown Resistors• >1500V ESD Protection̶...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
US $4.26 - 6.3 / Piece
Counter Shift Registers 5V ECL 8-Bit Binary Up Synchronous
The MC10/100EL34 is a low skew ÷2, ÷4, ÷8 clock generation chip designed explicitly for low skew clock generation applications. The internal dividers are synchronous to each other, therefore, the common output edges are all precisely aligned. The MC10/100EL34 can be driven by either a differential or single-ended ECL or, if positive power supplies are used, PECL input signal. In addition, by using the VBB output, a sinusoidal source can be AC coupled into the device (see Interfacing section of the ECLinPSE Data Book DL140/D). If a single-ended input is to be used, the VBB output should be connected to the CLKinput and bypassed to ground via a 0.01mF capacitor. The VBB output of MC10/100EL34 is designed to act as the switching reference for the input of the EL34 under single-ended input conditions, as a result, this pin can only source/sink up to 0.5mA of current.
The common enable (NE) is synchronous so that the internal dividers will only be enabled/disabled when the internal clock is already in the LOW state. MC10/100EL34 avoids any chance of generating a runt clock pulse on the internal clock when the MC10/100EL34 is enabled/disabled as can happen with an asynchronous control. An internal runt pulse could lead to losing synchronization between the internal divider stages. The internal enable flip-flop is clocked on the falling edge of the input clock, therefore, all associated specification limits are referenced to the negative edge of the clock input.
The Phase_Out output of MC10/100EL34 will go HIGH for one clock cycle whenever the ÷2 and the ÷4/6 outputs are both transitioning from a LOW to a HIGH. This output allows for clock synchronization within the system.
Upon startup, the internal flip-flops of MC10/100EL34 will attain a random state; therefore, for systems which utilize multiple LVEL38s, the master reset (MR) input must be asserted to ensure synchronization. For systems which only use one LVEL38, the MR pin need not be exercised as the internal divider design ensures synchronization between the ÷2 and the ÷4/6 outputs of a single device.
