Features: •1:10 differential clock fanout buffer•80 ps maximum device skew•SiGe technology•Supports DC to 625 MHz operation of clock or data signals•HSTL compatible differential clock outputs•PECL and HSTL compatible differential clock inputs•3.3 V power s...
MC100ES8111: Features: •1:10 differential clock fanout buffer•80 ps maximum device skew•SiGe technology•Supports DC to 625 MHz operation of clock or data signals•HSTL compatible dif...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
US $4.26 - 6.3 / Piece
Counter Shift Registers 5V ECL 8-Bit Binary Up Synchronous
Symbol | Characteristics | Min | Max | Unit |
VCC | Supply Voltage | -0.3 | 3.6 | V |
VCCO | Supply Voltage | -0.3 | 3.1 | V |
VIN | DC Input Voltage | -0.3 | VCC + 0.3 |
V |
VOUT | DC Output Voltage | -0.3 | VCC + 0.3 |
V |
IIN | DC Input Current | ±20 | mA | |
IOUT | DC Output Current | ±50 | mA | |
TS | Storage Temperature | -65 | 150 | °C |
TFunc | Functional Temperature Range | TA = 40 | T J= +110 |
°C |
The MC100ES8111 is designed for low skew clock distribution systems and supports clock frequencies up to 625 MHz. The MC100ES8111 accepts two clock sources. The CLK0 input accepts HSTL compatible signals and CLK1 accepts PECL compatible signals. The selected input signal is distributed to 10 identical, differential HSTL compatible outputs.
In order to meet the tight skew specific ation of the MC100ES8111, both outputs of a differential output pair should be terminated, even if only one output is used. In the case where not all 10 outputs of MC100ES8111 are used, the output pairs on the same package side as the parts being used on that side should be terminated.

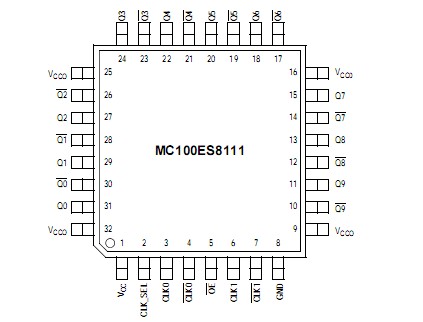

The HSTL compatible output levels are generated with an open emitter architecture. MC100ES8111 minimizes part-to-part and output-to-output skew. The open-emitter outputs require a 50 Ω DC termination to GND (0V). The output supply voltage of MC100ES8111 can be either 1.5V or 1.8V, the core voltage supply is 3.3V. The output enable control is synchronized inte rnally preventing output runt pulse generation. Outputs are only disabled or enabled when the outputs are already in logic low state (true outputs logic low, inverted outputs logic high). The internal synchronizer eliminates the setup and hold time requirements for the external clock enable signal. The MC100ES8111 is packaged in a 7x7 mm2 32-lead LQFP package.
