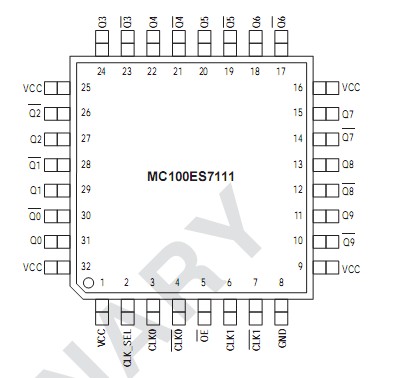

Features: •1:10 differential clock fanout buffer•50 ps maximum device skew1•SiGe technology•Supports DC to 1000 MHz operation1of clock or data signals•LVDS compatible differential clock outputs•PECL and HSTL/LVDS compatible differential clock inputs•3.3V p...
MC100ES7111: Features: •1:10 differential clock fanout buffer•50 ps maximum device skew1•SiGe technology•Supports DC to 1000 MHz operation1of clock or data signals•LVDS compatible d...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
US $4.26 - 6.3 / Piece
Counter Shift Registers 5V ECL 8-Bit Binary Up Synchronous
Symbol |
Characteristics |
Min |
Max |
Unit |
VCC |
Supply Voltage |
-0.3 |
3.9 |
V |
VIN |
DC Input Voltage |
-0.3 |
VCC+ 0.3 |
V |
VOUT |
DC Output Voltage | -0.3 | VCC+0.3 | V |
IDC | Input Current | ±20 | mA | |
IOUT |
DC Output Current |
±50 | mA | |
TS |
Storage temperature |
-65 | 125 | |
TFunc |
Functional temperature range |
TA= -40 | TJ= +110 |
The MC100ES7111 is designed for low skew clock distribution systems and supports clock frequencies up to 1000 MHz1. Thedevice accepts two clock sources. The CLK0 input accepts LVDS or HSTL compatible signals and CLK1 accepts PECL compatible signals. The selected input signal of MC100ES7111 is distributed to 10 identical, differential LVDS compatible outputs.
The output enable control of MC100ES7111 is synchronized internally preventing output runt pulse generation. Outputs are only disabled or enabled when the outputs are already in logic low state (true outputs logic low, inverted outputs logic high). The internal synchronizer eliminates the setup and hold time requirements for the external clock enable signal. The MC100ES7111 is packaged in a7x7 mm232-lead LQFP package.
