Product Details

Description



Features:

• 1:20 differential clock fanout buffer
• 100 ps maximum device skew
• SiGe technology
• Supports DC to 2 GHz operation of clock or data signals
• ECL/PECL compatible differential clock outputs
• ECL/PECL/HSTL compatible differential clock inputs
• Single 3.3V, -3.3V, 2.5V or -2.5V supply
• Standard 52 lead LQFP package with exposed pad for enhanced thermal characteristics
• Supports industrial temperature range
• Pin and function compatible to the MC100EP221

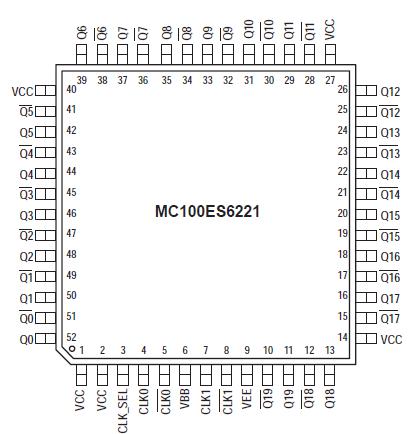

Pinout

Connection Diagram


Specifications

Symbol Characteristics Min Max Unit
VCC Supply Voltage -0.3 3.6 V
VIN DC Input Voltage -0.3 VCC + 0.3 V
VOUT DC Output Voltage -0.3 VCC + 0.3 V
IIN DC Input Current   ±20 mA
IOUT DC Output Current   ±50 mA
TS Storage temperature -65 125 °C
TFUNC Functional temperature range TA = -40 TJ = +110 °C
a. Absolute maximum continuous ratings are those maximum values beyond which damage to the device may occur. Exposure to these conditions or conditions beyond those indicated may adversely affect device reliability. Functional operation at absolute-maximum-rated conditions is not implied.


Description

The Motorola MC100ES6221 is a bipolar monolithic differential clock fanout buffer. Designed for most demanding clock distribution systems, the MC100ES6221 supports various applications that require the distribution of precisely aligned differential clock signals. Using SiGe technology and a fully differential architecture, the MC100ES6221 offers very low skew outputs and superior digital signal characteristics. Target applications for this clock driver is high performance clock distribution in computing, networking and telecommunication systems.
