MC100ES60T22

Features: • 280 ps typical propagation delay• 100 ps max output-to-output skew• LVPECL operating range: VCC = 3.135 V to 3.8 V• 8-lead SOIC and 8-lead TSSOP packages• Ambient temperature range 40°C to +85°CPinoutSpecifications Symbol Parameter Conditions R...

product image

MC100ES60T22 Picture
See larger image
SeekIC No. : 004414805 Detail

MC100ES60T22: Features: • 280 ps typical propagation delay• 100 ps max output-to-output skew• LVPECL operating range: VCC = 3.135 V to 3.8 V• 8-lead SOIC and 8-lead TSSOP packages• A...

MC100ES60T22 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC100ES60T22
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 280 ps typical propagation delay
• 100 ps max output-to-output skew
• LVPECL operating range: VCC = 3.135 V to 3.8 V
• 8-lead SOIC and 8-lead TSSOP packages
• Ambient temperature range 40°C to +85°C


Pinout

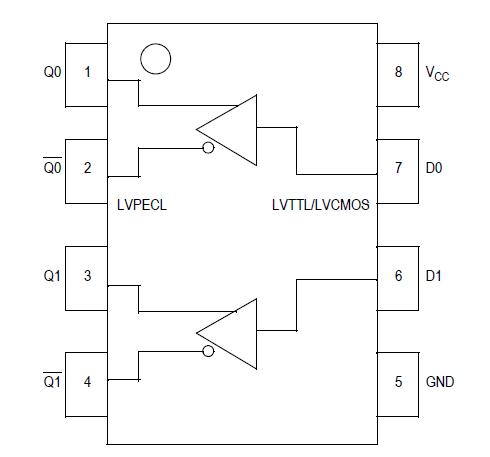

Connection Diagram


Specifications

Symbol
 Parameter Conditions
Rating
Unit
VSUPPLY
 Power Supply Voltage Difference between VCC & VEE
3.9
V
VIN
 Input Voltage VCC - VEE 3.6V
VCC + 0.3
VEE - 0.3
V
V
IOUT
 Output Current Continuous
Surge
50
100
mA
mA
TA
 Operating Temperature Range
-40 to +85
°C
TSTG
 Storage Temperature Range
-65 to +150
°C

1. Absolute maximum continuous ratings are those maximum values beyond which damage to the device may occur. Exposure to these conditions or conditions beyond those indicated may adversely affect device reliability. Functional operation at absolute-maximum-rated conditions is not implied.




Description

The MC100ES60T22 is a low skew dual LVTTL/LVCMOS to differential LVPECL translator. The low voltage PECL levels, small package, and dual gate design are ideal for clock translation applications.
