MC100ES6056

Features: · 360 ps Typical Propagation Delays· Maximum Frequency > 3 GHz Typical· PECL Mode Operating Range: VCC = 2.375 V to 3.8 V with VEE = 0 V· ECL Mode Operating Range: VCC = 0 V with VEE = -2.375 V to -3.8 V· Open Input Default State· Separate and Common Select· Q Output Will Default LOW ...

product image

MC100ES6056 Picture
See larger image
SeekIC No. : 004414804 Detail

MC100ES6056: Features: · 360 ps Typical Propagation Delays· Maximum Frequency > 3 GHz Typical· PECL Mode Operating Range: VCC = 2.375 V to 3.8 V with VEE = 0 V· ECL Mode Operating Range: VCC = 0 V with VEE = ...

MC100ES6056 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC100ES6056
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 360 ps Typical Propagation Delays
· Maximum Frequency > 3 GHz Typical
· PECL Mode Operating Range: VCC = 2.375 V to 3.8 V with VEE = 0 V
· ECL Mode Operating Range: VCC = 0 V with VEE = -2.375 V to -3.8 V
· Open Input Default State
· Separate and Common Select
· Q Output Will Default LOW with Inputs Open or at VEE
· VBB Outputs
· LVDS Input Compatible
· 20-Lead Pb-Free Package Available


Pinout

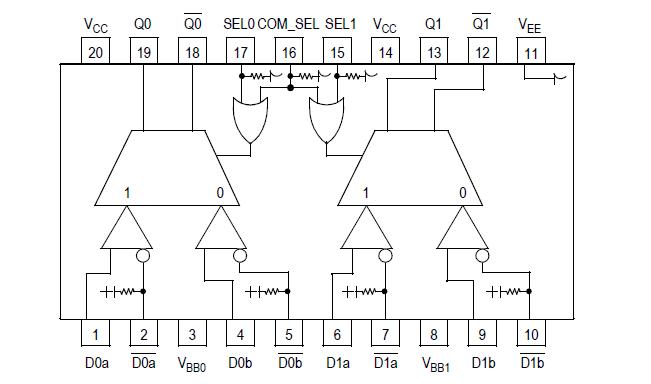

Connection Diagram


Specifications

Symbol
 Parameter Conditions
Rating
Unit
VSUPPLY
 Power Supply Voltage Difference between VCC & VEE
3.9
V
VIN
 Input Voltage VCC - VEE 3.6V
VCC + 0.3
VEE - 0.3
V
V
IOUT
 Output Current Continuous
Surge
50
100
mA
mA
IBB
 VBB Sink/Source Current
±0.5
°C
TA
 Operating Temperature Range
-40 to +85
°C
TSTG
 Storage Temperature Range
-65 to +150
°C

1. Absolute maximum continuous ratings are those maximum values beyond which damage to the device may occur. Exposure to these conditions or conditions beyond those indicated may adversely affect device reliability. Functional operation at absolute-maximum-rated conditions is not implied.




Description

path makes the MC100ES6056 ideal for multiplexing low skew clock or other skew sensitive signals. Multiple VBB pins are provided.


The VBB pin, an internally generated voltage supply, is available to this MC100ES6056 only. For single-ended input conditions, the unused differential input is connected to VBB as a switching reference voltage. VBB may also rebias AC coupled inputs. When used, decouple VBB and VCC via a 0.01 F capacitor and limit current sourcing or sinking to 0.5 mA. When not used, VBB should be left open. The MC100ES6056 features both individual and common select inputs to address both data path and random logic applications.

The 100ES Series contains temperature compensation.
