Features: ` Maximum Frequency >1.0 GHz Typical` 50 ps Output-to-Output Skew` PECL Mode Operating Range: VCC = 3.135 V to 3.8 V with VEE = 0 V` ECL Mode Operating Range: VCC = 0 V with VEE = -3.135 V to-3.8 V`Open Input Default State` Synchronous Enable/Disable` Master Reset for Synchronization ...
MC100ES6039: Features: ` Maximum Frequency >1.0 GHz Typical` 50 ps Output-to-Output Skew` PECL Mode Operating Range: VCC = 3.135 V to 3.8 V with VEE = 0 V` ECL Mode Operating Range: VCC = 0 V with VEE = -3.13...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
US $4.26 - 6.3 / Piece
Counter Shift Registers 5V ECL 8-Bit Binary Up Synchronous
Symbol |
Parameter | Condition 1 | Condition 2 |
Rating |
Units |
VCC |
PECL Mode Power Supply | VEE = 0 V |
3.9 |
V | |
VEE |
ECL Mode Power Supply | VCC = 0 V |
-3.9 |
V | |
VI |
PECL Mode Input Voltage ECL Mode Input Voltage |
VEE = 0 V VCC = 0 V |
VI VCC VI VEE |
3.9 -3.9 |
V V |
Iout |
Output Current | Continuous Surge |
50 100 |
mA mA | |
IBB |
VBB Sink/Source |
± 0.5 |
mA | ||
TA |
Operating Temperature Range |
-40 to +85 |
|||
Tstg |
Storage Temperature Range |
-65 to +150 |
|||
JA |
Thermal Resistance (Junction-to-Ambient) | 0 LFPM 500 LFPM |
20 SOIC 20 SOIC |
TBD TBD |
/W /W |

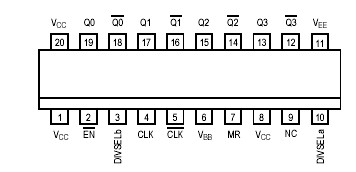

The MC100ES6039 is a low skew ÷2/4, ÷4/6 clock generation chip designed explicitly for low skew clock generation applications. The internal dividers are synchronous to each other, therefore, the common output edges are all precisely aligned. The device can be driven by either a differential or single-ended ECL or, if positive power supplies are used, LVPECL input signals. In addition, by using the VBB output, a sinusoidal source can be AC coupled into the device.
The common enable (EN) is synchronous so that the internal dividers will only be enabled/disabled when the internal clock is already in the LOW state. This avoids any chance of generating a runt clock pulse on the internal clock when the MC100ES6039 is enabled/disabled as can happen with an asynchronous control. The internal enable flip-flop is clocked on the falling edge of the input clock, therefore, all associated specification limits are referenced to the negative edge of the clock input.
Upon startup, the internal flip-flops will attain a random state; therefore, for systems which utilize multiple MC100ES6039s, the master reset (MR) input must be asserted to ensure synchronization. For systems which only use one MC100ES6039, the MR pin need not be exercised as the internal divider design ensures synchronization between the ÷2/4 and the ÷4/6 outputs of a single device. All VCC and VEE pins must be externally connected to power supply to guarantee proper operation.
The 100ES Series contains temperature compensation.
