Features: High bandwidth output transitions LVPECL operating range: VCC = 3.0 V to 3.6 V Internal input pulldown resistors on D inputs, pullup and pulldown resistors on D inputs 20 lead SOIC package Ambient temperature range -40PinoutSpecifications symbol perameter Conditions RatingUnit...

See larger image

SeekIC No. : 004414802 Detail

MC100ES6017: Features: High bandwidth output transitions LVPECL operating range: VCC = 3.0 V to 3.6 V Internal input pulldown resistors on D inputs, pullup and pulldown resistors on D inputs 20 lead SOIC packag...

MC100ES6017 Data Sheet

Get Latest Price

Part Number:: MC100ES6017
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

MC10 evaluate
PinoutDescriptionThe MC10/100EL34 is a low skew ÷2, ÷4, ÷8 clock generation chip designed explicit...
MC100E016FN evaluate
Counter Shift Registers 5V ECL 8-Bit Binary
MC100E016FNG evaluate
US $4.26 - 6.3 / Piece

Counter Shift Registers 5V ECL 8-Bit Binary Up Synchronous

Product Details

Description

Features:

High bandwidth output transitions
LVPECL operating range: V_CC= 3.0 V to 3.6 V
Internal input pulldown resistors on D inputs, pullup and pulldown resistors on
D inputs
20 lead SOIC package
Ambient temperature range -40

Pinout

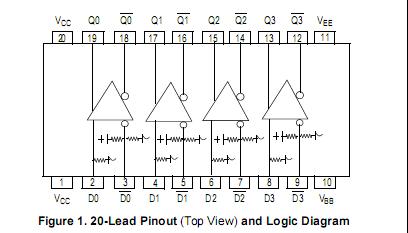

Connection Diagram

Specifications

symbol	perameter	Conditions	RatingUnit	unit
V_SUPPLY	Power Supply Voltage	difference between V_CC& V_EE	3.9	V
V^_IN	Input Voltage	V_CC- V_EE3.6v	V_CC+ 0.3 V_EE- 0.3	V V
I_OUT	Output Current	Continuous Surge	50 100	mA mA
L_BB	V_BB Sink/Source		± 0.5m	mA
T_A	Operating Temp Range		-40 to +85	^oC
T_STG	Storage Temp Range		-65 to +150	^oC

Description

The MC100ES6017 is a 3.3 V ECL/PECL quad differential receiver. Under open input conditions, the D input will be biased at V_CC/2 and the D input will be pulled down to V_EE. This operation will force the Q output LOW and ensure stability.

For single-ended input conditions, the unused MC100ES6017 differential input is connected to V_BBas a switching reference voltage. V_BBmay also rebias AC coupled inputs. When used, decouple V_BBand V_CCvia a 0.01 µF capacitor and limit current sourcing or sinking to 0.5 mA. When not used, V_BBshould be left open.
