Product Details

Description

Features:

270 ps Typical Propagation Delay
Maximum Frequency > 3 GHz Typical
PECL Mode Operating Range: V_CC = 2.375 V to 3.8 V with V_EE= 0 V
ECL Mode Operating Range: V_CC = 0 V with V_EE = -2.375 V to -3.8 V
Open Input Default State
Q Output Will Default LOW with Inputs Open or at V_EE
LVDS Input Compatible

Pinout

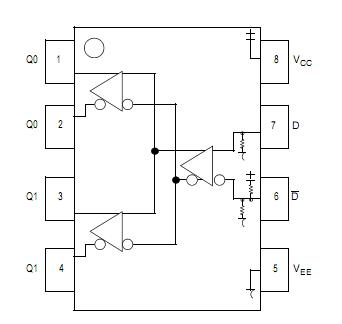

Connection Diagram

Specifications

Symbol	Parameter	Conditions	Rating	Units
V SUPPLY	Power Supply Voltage	Difference between VCC& VEE	3.9	V
V_IN	Input Voltage	V_CC-V_EE< 3.6 V	VCC+0.3 VEE-0.3	V V
I_OUT	Output Current	Continuous Surge	50 100	mA mA
T_A	Operating Temperature Range		-40 to +85
T_stg	Storage Temperature Range		-65 to +150

Description

The MC100ES6011 is a differential 1:2 fanout buffer. The ES6011 is ideal for applications requiring lower voltage.
The 100ES Series contains temperature compensation.
