Features:

• 450 ps Typical Propagation Delay
• Maximum Frequency > 1.5 GHz Typical
• PECL Mode
• Operating Range: VCC = 3.0 V to 3.8 V with VEE = 0 V
• PNP LVTTL Inputs for Minimal Loading
• Q Output Will Default HIGH with Inputs Open
• The 100 Series Contains Temperature Compensation.


Pinout

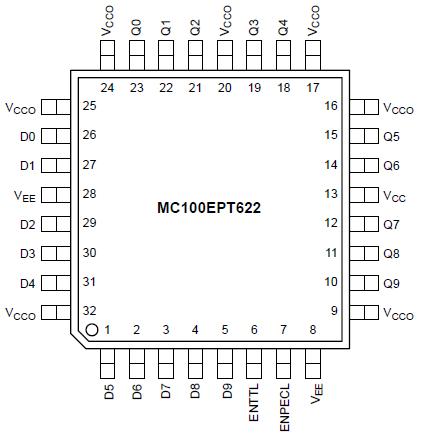

Connection Diagram


Specifications

Symbol
Parameter
Condition 1
Condition 2
Rating
Unit
VCC
 Power Supply VEE = 0 V
5
V
VI
 Input Voltage VEE = 0 V
5 TO 0
V
Iout
 Output Current Continuous
Surge
VI VCC
50
100
mA
mA
TA
 Operating Temperature Range
-40 to + 85
Istg
 Storage Temperature Range
-65 to +150
JA
 Thermal Resistance (Junction−to−Ambient) 0 lfpm
500 lfpm
32 LQFP
32 LQFP
80
55
/W
/W
JC
 Thermal Resistance (Junction−to−Case) std bd
32 LQFP
12 to 17
/W
Tsol
 Wave Solder <2 to 3 sec @ 248°C
265



Description

The MC100EPT622 is a 10-Bit LVTTL/LVCMOS to LVPECL translator. Because LVPECL (Positive ECL) levels are used only +3.3 V and ground are required. The device has an OR- ed enable input which can accept either LVPECL (ENPECL) or TTL/LVCMOS inputs (ENTTL). If the inputs are left open, they will default to the enable state. The device design has been optimized for low channel- to- channel skew
