MC100EPT23

Features: • 1.5 ns Typical Propagation Delay• Maximum Operating Frequency > 275 MHz• 24 mA LVTTL Outputs• Operating Range: VCC = 3.0 V to 3.6 V with GND = 0 V• Pb−Free Packages are AvailablePinoutSpecifications Symbol Parameter ...

product image

MC100EPT23 Picture
See larger image
SeekIC No. : 004414796 Detail

MC100EPT23: Features: • 1.5 ns Typical Propagation Delay• Maximum Operating Frequency > 275 MHz• 24 mA LVTTL Outputs• Operating Range: VCC = 3.0 V to 3.6 V with GND = 0 V• Pb...

MC100EPT23 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC100EPT23
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 1.5 ns Typical Propagation Delay
• Maximum Operating Frequency > 275 MHz
• 24 mA LVTTL Outputs
• Operating Range: VCC = 3.0 V to 3.6 V with GND = 0 V
• Pb−Free Packages are Available


Pinout

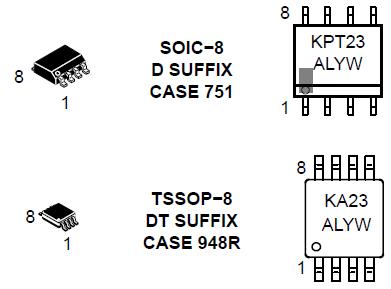

Connection Diagram


Specifications

Symbol
Parameter
Condition 1
Condition 2
Rating
Unit
VCC
 Power Supply GND = 0 V
3.8
V
VI
 Input Voltage GND = 0 V
3.8
V
Iout
 Output Current Continuous
Surge
VI VCC
50
100
mA
mA
TA
 Operating Temperature Range
-40 to + 85
Iout
 Storage Temperature Range
-65 to +150
JA
 Thermal Resistance (Junction−to−Ambient) 0 lfpm
500 lfpm
SOIC−8
SOIC−8
190
130
/W
JC
 Thermal Resistance (Junction−to−Case) Standard Board
SOIC−8
41 to 44
/W
/W
JA
 Thermal Resistance (Junction−to−Ambient) 0 lfpm
500 lfpm
TSSOP−8
TSSOP−8
185
140
/W
JC
 Thermal Resistance (Junction−to−Case) Standard Board
TSSOP−8
41 to 44
/W
/W
Tsol
 Wave Solder <2 to 3 sec @ 248°C
265



Description

The MC100EPT23 is a dual differential LVPECL/LVDS to LVTTL translator. Because LVPECL (Positive ECL) or LVDS levels are used, only +3.3 V and ground are required. The small outline 8-lead package and the dual gate design of the EPT23 makes it ideal for applications which require the translation of a clock and a data signal.

The EPT23 is available in only the ECL 100K standard. Since there are no LVPECL outputs or an external VBB reference, the EPT23 does not require both ECL standard versions. The LVPECL/LVDS inputs are differential. Therefore, the MC100EPT23 can accept any standard differential LVPECL/LVDS input referenced from a VCC of +3.3 V.
