MC100EP11

Features: •220 ps Typical Propagation Delay•Maximum Clock Frequency > 3 GHz Typical•PECL Mode Operating Range: VCC= 3.0 V to 5.5 V with VEE= 0 V•NECL Mode Operating Range: VCC= 0 Vwith VEE= −3.0 V to −5.5 V•Open Input Default State•Safety Clamp on...

product image

MC100EP11 Picture
See larger image
SeekIC No. : 004414769 Detail

MC100EP11: Features: •220 ps Typical Propagation Delay•Maximum Clock Frequency > 3 GHz Typical•PECL Mode Operating Range: VCC= 3.0 V to 5.5 V with VEE= 0 V•NECL Mode Operating Range:...

MC100EP11 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC100EP11
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•220 ps Typical Propagation Delay
•Maximum Clock Frequency > 3 GHz Typical
•PECL Mode Operating Range: VCC= 3.0 V to 5.5 V with VEE= 0 V
•NECL Mode Operating Range: VCC= 0 Vwith VEE= −3.0 V to −5.5 V
•Open Input Default State
•Safety Clamp on Inputs
•Q Outputs Will Default LOW with Inputs Open or at VEE


Application

The MC10/100EP11 is a differential 1:2 fanout buffer. The device is
pin and functionally equivalent to the LVEL11 device. With AC
performance much faster than the LVEL11 device, the EP11 is ideal
for applications requiring the fastest AC performance available.
The 100 Series contains temperature compensation.


Pinout

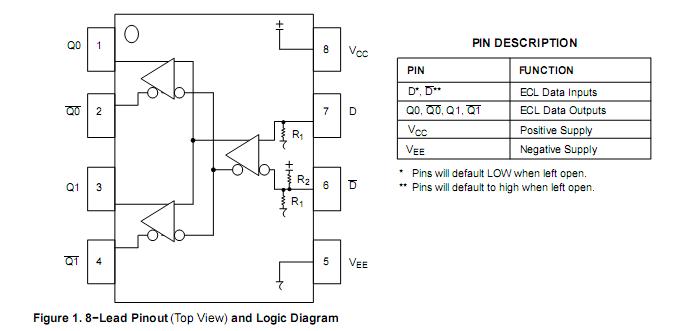

Connection Diagram


Specifications

Symbol Parameter
Condition 1
Condition 2
Rating
Unit
VCC PECL Mode Power Supply VEE= 0 V   6 V
VEE NECL Mode Power Supply VCC= 0 V   -6 V
VI PECL Mode Input Voltage
NECL Mode Input Voltage		 VEE= 0 V
VCC= 0 V

VI VCC

VI VEE

6
−6		 V
V
IOUT Output Current Continuous
Surge		   50
100		 mA
mA
TA Operating Temperature Range     −40 to +85
Tstg Storage Temperature Range     −65 to +150
0JA Thermal Resistance (Junction−to−Ambient) 0 LFPM
500 LFPM		 8 SOIC
8 SOIC		 190
130		 /W
/W
0JC Thermal Resistance (Junction−to−Case) std bd 8 SOIC 41 to 44 °
C/W
0JA Thermal Resistance (Junction−to−Ambient) 0 LFPM
500 LFPM		 8 TSSOP
8 TSSOP		 185
140		 /W
/W
0JC Thermal Resistance (Junction−to−Case) std bd 8 TSSOP 41 to 44 /W
Tsol Wave Solder < 2 to 3 sec @ 248°C   265



Description

The MC100EP11 is a differential 1:2 fanout buffer. The device is pin and functionally equivalent to the LVEL11 device. With AC performance much faster than the LVEL11 device, the EP11 is ideal for applications requiring the fastest AC performance available.

The 100 Series contains temperature compensation.
