MC100EP01

Features: •230 ps Typical Propagation Delay•Maximum Frequency > 3 GHz Typical•PECL Mode Operating Range:VCC= 3.0 V to 5.5 V with VEE= 0 V•NECL Mode Operating Range:VCC= 0 V with VEE= −3.0 V to −5.5 V•Open Input Default State •Pb−Free Packag...

product image

MC100EP01 Picture
See larger image
SeekIC No. : 004414754 Detail

MC100EP01: Features: •230 ps Typical Propagation Delay•Maximum Frequency > 3 GHz Typical•PECL Mode Operating Range:VCC= 3.0 V to 5.5 V with VEE= 0 V•NECL Mode Operating Range:VCC= 0 ...

MC100EP01 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC100EP01
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•230 ps Typical Propagation Delay
•Maximum Frequency > 3 GHz Typical
•PECL Mode Operating Range:VCC = 3.0 V to 5.5 V with VEE = 0 V
•NECL Mode Operating Range:VCC = 0 V with VEE = −3.0 V to −5.5 V
•Open Input Default State

•Pb−Free Package is Available




Pinout

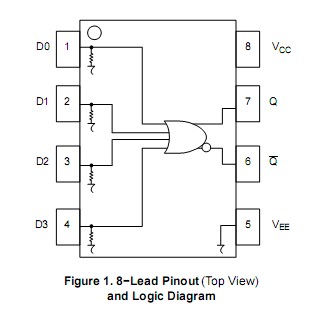

Connection Diagram


Specifications

Symbol
 Parameter
Condition 1
Condition 2
Rating
Unit
VCC PECL Mode Power Supply VEE=OV   6 V
VEE NECL Mode Power Supply VCC=OV   -6 V
VI PECL Mode Input Voltage
NECL Mode Input Voltage		 VEE= 0 V
VCC= 0 V		 VIVCC

VIVEE		 6
−6		 V
V
IOUT Output Current Continuous
Surge		   50
100		 mA
mA
IBB VBB Sink/Source     ±0.5 mA
TA Operating Temperature Range     −40 to +85
Tsty Storage Temperature Range     −65 to +150
0JA Thermal Resistance (Junction−to−Ambient) 0 lfpm
500 lfpm		 SOIC−8
SOIC−8		 190
130		 /W
/W
0JC Thermal Resistance (Junction−to−Case) Standard Board SOIC−8 41 to 44 /W
0JA Thermal Resistance (Junction−to−Ambient) 0 lfpm
500 lfpm		 TSSOP−8
TSSOP−8		 185
140		 /W
/W
0JC Thermal Resistance (Junction−to−Case) Standard Board TSSOP−8 41 to 44 /W
TSOL Wave Solder <2 to 3 sec @ 248
   265



Description

The MC100EP01 is a 4−input OR/NOR gate. The device is functionally equivalent to the EL01 device, LVEL01, and E101 (a quad version). With AC performance much faster than the LVEL01 device, the EP01 is ideal for applications requiring the fastest AC performance available.

The 100 Series contains temperature compensation.
