MC100ELT25

Features: · 2.6ns Typical Propagation Delay·Differential ECL Inputs· Small Outline SOIC Package· 24mA TTL Outputs· Flow Through PinoutsPinoutSpecifications Symbol Parameter Value Unit VCC DC Supply Voltage (Referenced to GND, VEE= 5.2) 7.0 V VEE DC Supply Voltage ...

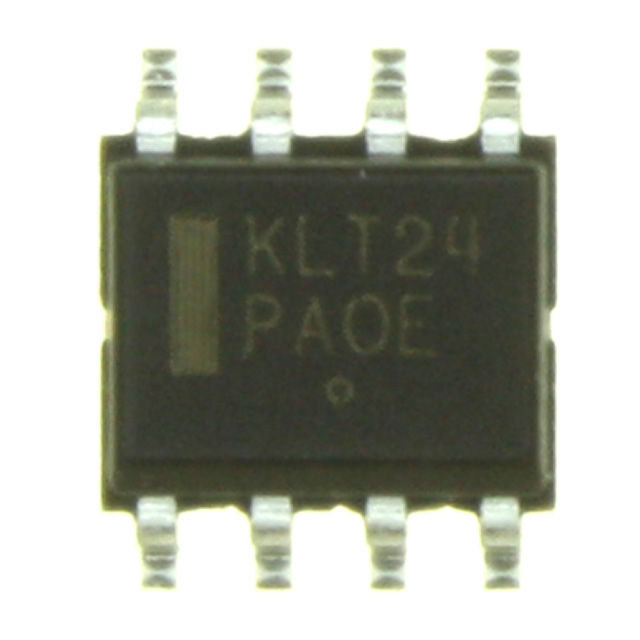

product image

MC100ELT25 Picture
See larger image
SeekIC No. : 004414751 Detail

MC100ELT25: Features: · 2.6ns Typical Propagation Delay·Differential ECL Inputs· Small Outline SOIC Package· 24mA TTL Outputs· Flow Through PinoutsPinoutSpecifications Symbol Parameter Value Uni...

MC100ELT25 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC100ELT25
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 2.6ns Typical Propagation Delay
·Differential ECL Inputs
· Small Outline SOIC Package
· 24mA TTL Outputs
· Flow Through Pinouts


Pinout

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VCC
 DC Supply Voltage (Referenced to GND, VEE= 5.2)
7.0
V
VEE
 DC Supply Voltage (Referenced to GND, VCC = 5.0)
8.0
V
VIN
 Input Voltage
0 to VCC
V
IOUT
 Current Applied to Output in Low Output State Continuou
Surg
50
100
mA
TA
 Operating Temperature Range (In Free-Air)
40 to 85
TSTG
 Storage Temperature Range
55 to +150
` Maximum Ratings are those values beyond which damage to the device may occur. Functional operation should be restricted to the Recommended Operating Conditions.


Description

The MC100ELT25 is a differential ECL to TTL translator. Because ECL levels are used a +5V, -5.2V (or -4.5V) and ground are required. The small outline 8-lead SOIC package and the single gate of the ELT25 makes it ideal for those applications where space, performance and low power are at a premium. Because the mature MOSAIC 1.5 process is used, low cost can be added to the list of features.

The VBBoutput allows the MC100ELT25 to also be used in a single-ended input mode. In this mode the VBB output is tied to the IN input for a non-inverting buffer or the IN input for an inverting buffer. If used the VBB pin should be bypassed to ground via a 0.01F capacitor.

The MC100ELT25 is available in both ECL standards: the 10ELT is compatible with MECL 10H logic levels while the 100ELT is compatible with ECL 100K logic levels.
