MC100ELT24

Features: • 1.2ns Typical Propagation Delay• Differential PECL Outputs• Small Outline SOIC Package• PNP TTL Inputs for Minimal Loading• Flow Through PinoutsPinoutSpecifications Symbol Parameter Value Unit VCC DC Supply Voltage (Referenced to GND, VCC = 5.2...

product image

MC100ELT24 Picture
See larger image
SeekIC No. : 004414750 Detail

MC100ELT24: Features: • 1.2ns Typical Propagation Delay• Differential PECL Outputs• Small Outline SOIC Package• PNP TTL Inputs for Minimal Loading• Flow Through PinoutsPinoutSpecif...

MC100ELT24 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC100ELT24
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 1.2ns Typical Propagation Delay
• Differential PECL Outputs
• Small Outline SOIC Package
• PNP TTL Inputs for Minimal Loading
• Flow Through Pinouts


Pinout

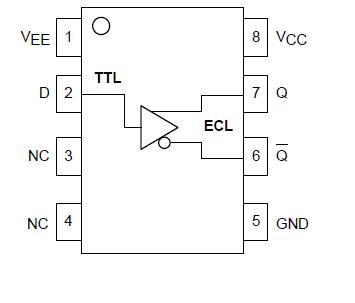

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC DC Supply Voltage (Referenced to GND, VCC = 5.2V) 7.0 V
VEE DC Supply Voltage (Referenced to GND, VCC = 5.0V) 8.0 V
VIN Input Voltage 40 to VCC V
IOUT Current Applied to Output in Low Output State Continuous
Surge		 50
100		 mA
TA Operating Temperature Range (In Free-Air) 40 to 85 °C
TSTG Storage Temperature Range 55 to +150 °C
* Maximum Ratings are those values beyond which damage to the device may occur. Functional operation should be restricted to the Recommended Operating Conditions.


Description

The MC100ELT24 is a TTL to differential ECL translator. Because ECL levels are used a +5V, -5.2V (or -4.5V) and ground are required. The small outline 8-lead SOIC package and the single gate of the ELT24 makes it ideal for those applications where space, performance and low power are at a premium. Because the mature MOSAIC 1.5 process is used, low cost can be added to the list of features.

The MC100ELT24 is available in both ECL standards: the 10ELT is compatible with MECL 10H logic levels while the 100ELT is compatible with ECL 100K logic levels.
