MC100ELT23D

Translation - Voltage Levels 5V Dual Diff PECL

product image

MC100ELT23D Picture
See larger image
SeekIC No. : 00451286 Detail

MC100ELT23D: Translation - Voltage Levels 5V Dual Diff PECL

MC100ELT23D Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC100ELT23D
Mfg:
ON Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Type : PECL to TTL Propagation Delay Time : 5.5 ns
Supply Voltage - Max : 5.25 V Supply Voltage - Min : 4.75 V
Maximum Operating Temperature : + 85 C Mounting Style : SMD/SMT
Package / Case : SOIC-8

Description

Supply Current :
Maximum Operating Temperature : + 85 C
Mounting Style : SMD/SMT
Package / Case : SOIC-8
Propagation Delay Time : 5.5 ns
Supply Voltage - Min : 4.75 V
Supply Voltage - Max : 5.25 V
Type : PECL to TTL


Features:

· 3.5ns Typical Propagation Delay
· Differential PECL Inputs
· Small Outline SOIC Package
· 24mA TTL Outputs
· Flow Through Pinouts


Pinout

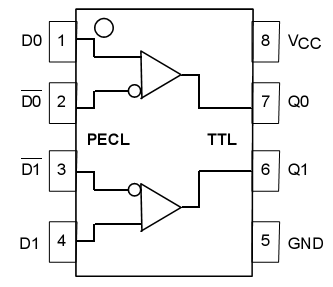

Connection Diagram


Description

The MC100ELT23D is a dual differential PECL to TTL translator. Because PECL (Positive ECL) levels are used only +5V and ground are required. The small outline 8-lead SOIC package and the dual gate design of the ELT23 makes it ideal for applications which require the translation of a clock and a data signal. Because the mature MOSAIC 1.5 process is used, low cost can be added to the list of features.

The MC100ELT23D is available in only the ECL 100K standard. Since there are no PECL outputs or an external VBB  reference, the ELT23 does not require both ECL standard versions. The PECL inputs are differential; there is no specified difference between the differential input 10H and 100K standards. Therefore, the MC100ELT23D can accept any standard differential PECL input referenced from a VCC  of 5.0V.




Parameters:

Technical/Catalog InformationMC100ELT23D
VendorON Semiconductor
CategoryIntegrated Circuits (ICs)
Package / Case8-SOIC
PackagingTube
Input TypePECL
Output TypeTTL
Supply Voltage4.75 V ~ 5.25 V
Data Rate-
Number of Channels2
Operating Temperature-40°C ~ 85°C
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names MC100ELT23D
MC100ELT23D
MC100ELT23DOS ND
MC100ELT23DOSND
MC100ELT23DOS
