MC100EL12D

Logic Type: Buffer/Line Driver, Non-Inverting
Number of Elements: 1
Number of Bits per Element: 1
Operating Temperature: -40°C ~ 85°C
Mounting Type: Surface Mount
Packaging: Tube
Current - Output High, Low: -
Manufacturer: ON Semiconductor
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Series: 100EL
Voltage - Supply: 4.2 V ~ 5.7 V
Supplier Device Package: 8-SOICN


Features:

 290ps Propagation Delay
Dual Outputs for 25 Drive Applications
75 Internal Input Pulldown Resistors
>1000V ESD Protection

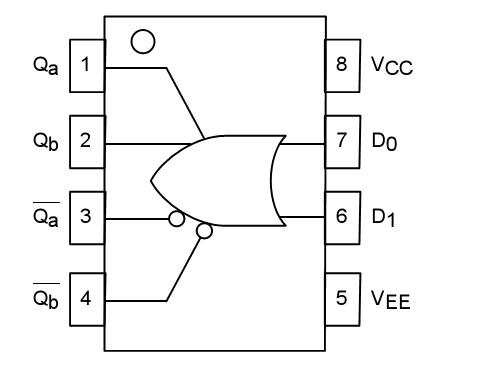

Pinout




Description

The MC100EL12D is a low impedance drive buffer. With two pairs of OR/NOR outputs the device is ideally suited for high drive applications such as memory addressing. The device is a function equivalent to the E112 device with higher performance capabilities. With propagation delays significantly faster than the E112 the MC100EL12D is ideally suited for those applications which require the ultimate in AC performance.
