MC100EL05D: IC GATE AND/NAND ECL 2INP 8SOIC

MC100EL05D Data Sheet

US $ 3.08~3.08 / Piece | Get Latest Price

Part Number:: MC100EL05D
Mfg:: ON Semiconductor
Supply Ability:: 5000

Price Break

Qty
1~196

Unit Price
$3.08

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

MC10 evaluate
PinoutDescriptionThe MC10/100EL34 is a low skew ÷2, ÷4, ÷8 clock generation chip designed explicit...
MC100E016FN evaluate
Counter Shift Registers 5V ECL 8-Bit Binary
MC100E016FNG evaluate
US $4.26 - 6.3 / Piece

Counter Shift Registers 5V ECL 8-Bit Binary Up Synchronous

Product Details

Description

Features:

•275ps Propagation Delay
•High Bandwidth Output Transitions
•75kΩ Internal Input Pulldown Resistors
•>1000V ESD Protection

Pinout

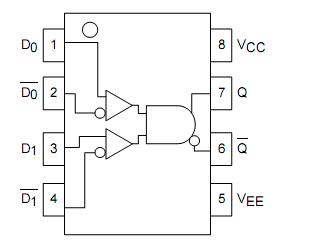

Connection Diagram

Description

The MC100EL05D is a 2-input differential AND/NAND gate. The device is functionally equivalent to the E404 device with higher performance capabilities. With propagation delays and output transition times significantly faster than the E404 the EL05 is ideally suited for those applications which require the ultimate in AC performance.

Because a negative 2-input NAND is equivalent to a 2-input OR function, the differential inputs and outputs of the device allows the EL05 to also be used as a 2-input differential OR/NOR gate.

The MC100EL05D differential inputs employ clamp circuitry so that under open input conditions (pulled down to VEE) the input to the AND gate will be HIGH. In this way, if one set of inputs is open, the gate will remain active to the other input.

Parameters:

Technical/Catalog Information	MC100EL05D
Vendor	ON Semiconductor
Category	Integrated Circuits (ICs)
Number of Circuits	1 - Single
Logic Type	2 Input AND/NAND Gate
Current - Output High, Low	-
Output Type	Differential
Schmitt Trigger Input	No
Voltage - Supply	4.2 V ~ 5.7 V
Operating Temperature	-40°C ~ 85°C
Number of Inputs	2
Mounting Type	Surface Mount
Package / Case	8-SOIC
Packaging	Tube
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	MC100EL05D MC100EL05D MC100EL05DOS ND MC100EL05DOSND MC100EL05DOS
