MC100E210FN

Maximum Power Dissipation :
Maximum Operating Temperature : + 85 C
Minimum Operating Temperature : - 40 C
Packaging : Tube
Max Input Freq : 700 MHz
Number of Outputs : 18
Supply Voltage - Max : +/- 5.7 V
Supply Voltage - Min : +/- 4.2 V
Package / Case : PLCC-28
Propagation Delay (Max) : 0.75 ns


Features:

`Dual Differential Fanout Buffers
` 200ps ParttoPart Skew
` 50ps Typical OutputtoOutput Skew
` Low Voltage ECL/PECL Compatible
` 28lead PLCC Packaging

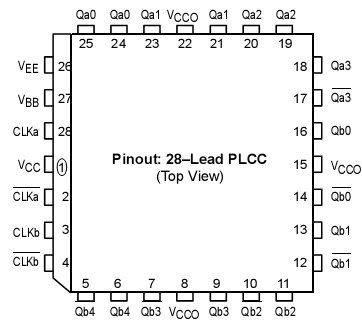

Pinout




Description

The MC100E210FN is a low voltage, low skew dual differential ECL fanout buffer designed with clock distribution in mind. The device features two fanout buffers, a 1:4 and a 1:5 buffer, on a single chip. The device features fully differential clock paths to minimize both device and system skew. The dual buffer allows for the fanout of two signals through a single chip, thus reducing the skew between the two fundamental signals from a parttopart skew down to an outputtooutput skew. This capability reduces the skew by a factor of 4 as compared to using two LVE111's to accomplish the same task. The MC100LVE210 works from a 3.3V supply while the MC100E210FN provides identical function and performance from a standard 4.5V 100E voltage supply.
