MC100E155

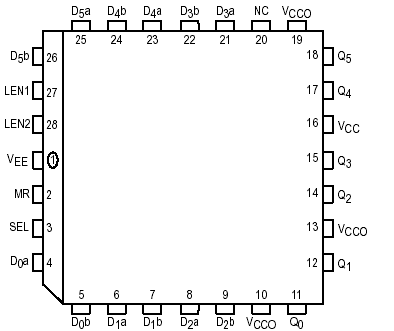

The MC100E155 contains six 2:1 multiplexers followed by transparent latches with single-ended outputs. When both Latch Enables (LEN1, LEN2) are LOW, the latch is transparent, and output data iscontrolled by the multiplexer select control, SEL. A logic HIGH on eitherLEN1 or LEN2 (or both) latches the outputs. The Master Reset (MR)overrides all other controls to set the Q outputs LOW.
