Product Details

Description

Features:

• 1100MHz Min. Toggle Frequency
• Differential Outputs
• Asynchronous Master Reset
• Dual Clocks
• Extended 100E VEE Range of 4.2V to 5.46V
• 75k Input Pulldown Resistors

Pinout

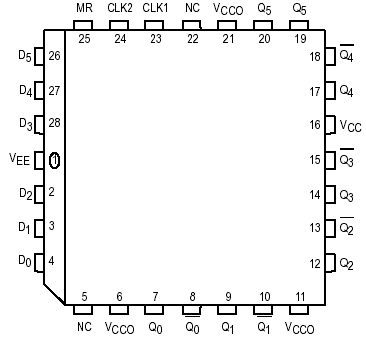

Connection Diagram

Description

The MC100E151 contains 6 D-type, edge-triggered, master-slave flip-flops with differential outputs. Data enters the master when both CLK1 and CLK2 are LOW, and is transferred to the slave when CLK1 or CLK2 (or both) go HIGH. The asynchronous Master Reset (MR) makes all Q outputs go LOW.
