MBVD23381HJ-70

Features: • Power Supply Voltage of 2.7 V to 3.1 V• High Performance 70 ns maximum random access time (Flash) 60 ns maximum random access time (FCRAM)• Operating Temperature 30 to +85• Package 56-ball BGAPinoutSpecifications Parameter Symbol Rating Unit Min Max...

product image

MBVD23381HJ-70 Picture
See larger image
SeekIC No. : 004414676 Detail

MBVD23381HJ-70: Features: • Power Supply Voltage of 2.7 V to 3.1 V• High Performance 70 ns maximum random access time (Flash) 60 ns maximum random access time (FCRAM)• Operating Temperature 30 to...

MBVD23381HJ-70 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MBVD23381HJ-70
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Power Supply Voltage of 2.7 V to 3.1 V
• High Performance
         70 ns maximum random access time (Flash)
         60 ns maximum random access time (FCRAM)
• Operating Temperature
         30 to +85
• Package 56-ball BGA


Pinout

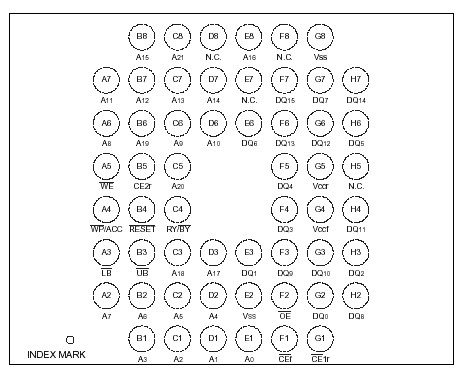

Connection Diagram


Specifications

Parameter Symbol Rating Unit
Min Max
Storage Temperature Tstg 55 +125
Ambient Temperature with Power Applied TA 30 +85
Voltage with Respect to Ground All pins
except RESET ,WP/ACC *1		 VIN, VOUT 0.3 VCCf + 0.3 V
VCCf + 0.3 V
VCCf/VCCr Supply *1 VCCf,VCCr 0.3 +3.3 V
RESET *2 VIN 0.5 +13.0 V
WP/ACC *3 VIN 0.5 +10.5 V
