Recovery Time
:
Maximum Power Dissipation
:
Mounting Style
: Through Hole
Configuration
: Single
Product
: Schottky Rectifiers
Packaging
: Tube
Maximum Reverse Leakage Current
: 500 uA

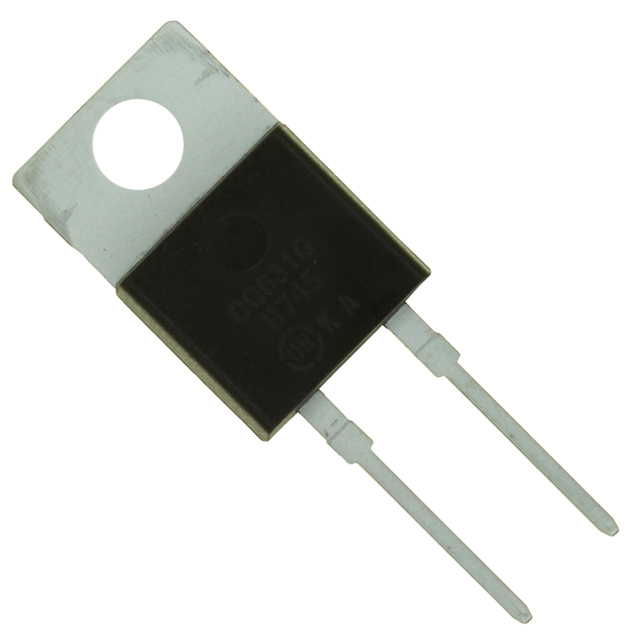

Package / Case
: TO-220AC
Operating Temperature Range
: - 65 C to + 150 C
Forward Voltage Drop
: 0.75 V
Max Surge Current
: 150 A
Forward Continuous Current
: 7.5 A
Peak Reverse Voltage
: 50 V
Features: • Schottky barrier chip
• Guard ring die construction for transient protection
• Low power loss, high efficiency
• High surge capability
• High current capability and low forward voltage drop
• For use in low voltage, high frequency inverters,free wheeling, and polarity protection application
• Plastic material has UL flammability classification 94V0Specifications
| Product Type
| Schottky |
| Part Number
| MBR750 |
| Max Average Rectified Current IO (A) |
7.5 |
| @ Terminal Temperature TT (oC) |
125 |
| Peak Repetitive Reverse Voltage VRRM (V) |
50 |
| Peak Forward Surge Current IFSM (A) |
150 |
| Forward Voltage Drop VF (V) |
0.65 |
| @ IF (A) |
7.5 |
| Max Reverse Current IR (mA) |
0.5 |
| @ VR (V) |
50 |
| Total Capacitance CT (pF) |
400 |
| Parameter |
Test Conditions |
Type |
Symbol |
Value |
Unit |
Repetitive peak reverse voltage
=Working peak reverse voltage
= DC Blocking voltage |
|
MBR730 |
VRRM
=VRWM
=VR |
30 |
V |
|
MBR735 |
35 |
V |
|
MBR740 |
40 |
V |
|
MBR745 |
45 |
V |
|
MBR750 |
50 |
V |
|
MBR760 |
60 |
V |
| Peak forward surge current |
|
|
IFSM |
150 |
A |
| Average forward current |
TC=125 |
|
IFAV |
7.5 |
A |
| Junction and storage temperature range |
|
|
Tj=Tstg |
65...+150 |
|
DescriptionMBR735 thru MBR750 datasheet
Parameters: | Technical/Catalog Information | MBR750 |
| Vendor | Diodes Inc |
| Category | Discrete Semiconductor Products |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 50V |
| Current - Average Rectified (Io) | 7.5A |
| Voltage - Forward (Vf) (Max) @ If | 750mV @ 7.5A |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 500A @ 50V |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Mounting Type | Through Hole, Radial |
| Package / Case | TO-220-2 (Straight Leads) |
| Packaging | Tube |
| Capacitance @ Vr, F | 400pF @ 4V, 1MHz |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | MBR750
MBR750
MBR750DI ND
MBR750DIND
MBR750DI
|
MBR750 Data Sheet
