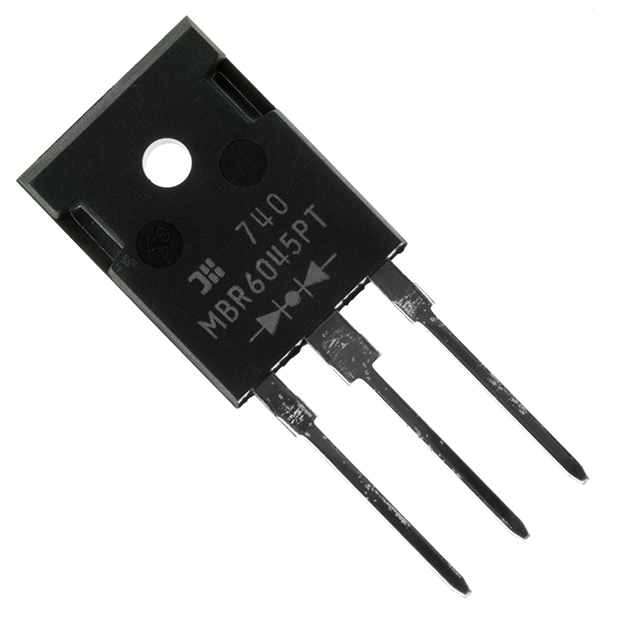

See larger image

SeekIC No. : 003426922 Detail

MBR6045PT-F: DIODE SCHOTTKY 60A 45V TO-3P-3

MBR6045PT-F Data Sheet

Get Latest Price

Part Number:: MBR6045PT-F
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

MBR60 evaluate
Features: · Metal of siliconrectifier, majonty carrier conducton· Guard ring for transient protect...
MBR600100CT evaluate
US $55.28 - 61.63 / Piece

Schottky (Diodes & Rectifiers) SI PWR SCHOTTKY 2TWR 20-100V 600A100P/70R
MBR600100CTR evaluate
US $55.28 - 61.63 / Piece

Schottky (Diodes & Rectifiers) SI PWR SCHOTTKY 2TWR 20-100V 600A100P/70R

Product Details

Quick Details

Series:	-	Manufacturer:	Diodes Inc
Voltage - Forward (Vf) (Max) @ If:	750mV @ 60A	Gain :	15 dB
Current - Reverse Leakage @ Vr:	1mA @ 45V	Current - Average Rectified (Io) (per Diode):	60A
Voltage - DC Reverse (Vr) (Max):	45V	Reverse Recovery Time (trr):	-
Diode Type:	Schottky	Speed:	Fast Recovery = 200mA (Io)
Diode Configuration:	1 Pair Common Cathode	Mounting Type:	Through Hole
Package / Case:	TO-3P-3, SC-65-3	Supplier Device Package:	TO-3P

Description

Series: -
Speed: Fast Recovery = 200mA (Io)
Diode Configuration: 1 Pair Common Cathode
Diode Type: Schottky
Reverse Recovery Time (trr): -
Voltage - DC Reverse (Vr) (Max): 45V
Mounting Type: Through Hole
Packaging: Tube
Current - Reverse Leakage @ Vr: 1mA @ 45V
Manufacturer: Diodes Inc
Voltage - Forward (Vf) (Max) @ If: 750mV @ 60A
Current - Average Rectified (Io) (per Diode): 60A
Package / Case: TO-3P-3, SC-65-3
Supplier Device Package: TO-3P

Parameters:

Technical/Catalog Information	MBR6045PT-F
Vendor	Diodes Inc
Category	Discrete Semiconductor Products
Diode Type	Schottky
Diode Configuration	1 Pair Common Cathode
Voltage - DC Reverse (Vr) (Max)	45V
Current - Average Rectified (Io) (per Diode)	60A
Voltage - Forward (Vf) (Max) @ If	750mV @ 60A
Current - Reverse Leakage @ Vr	1mA @ 45V
Reverse Recovery Time (trr)	-
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Mounting Type	Through Hole, Radial
Package / Case	TO-3P-3 (Straight Leads)
Packaging	Tube
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	MBR6045PT F MBR6045PTF MBR6045PT FDI ND MBR6045PTFDIND MBR6045PT-FDI
