MBR20080CT

Configuration :
Recovery Time :
Maximum Power Dissipation :
Mounting Style : SMD/SMT
Product : Schottky Diodes
Packaging : Bulk
Peak Reverse Voltage : 80 V
Maximum Reverse Leakage Current : 1 uA
Forward Voltage Drop : 0.88 V
Max Surge Current : 1500 A
Operating Temperature Range : - 40 C to + 175 C
Forward Continuous Current : 200 A
Package / Case : Module


Features:

150° C TJ  operation
Center tap TO-220, D2 Pak and TO-262 packages
Low forward voltage drop
High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
High frequency  operation
Guard ring for enhanced ruggedness and long term reliability

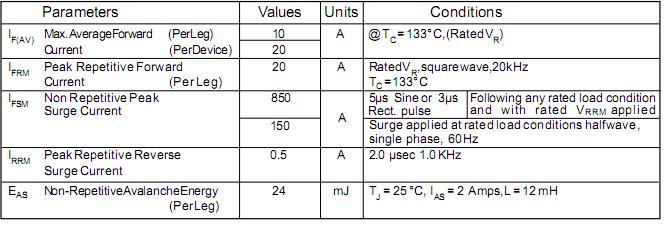

Specifications




Description

MBR20080CT has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 150° C junction temperature. Typical applications are in switching power supplies, converters, free-wheeling diodes, and reverse battery protection.
