Product Details

Description

Features:

·3 constant current channels for RGB LED cluster
·Output current invariant to load voltage change: 5V~ 12V
·Constant output current range: 3~ 60mA
·Output buffers for CLK, SDI, LE, and OE
·Output current accuracy: between channels: < ±5% (max.), and between ICs: < ±5% (max.)
·Built-in voltage regulator for 5~ 12V supply voltage
·5 MHz clock frequency

Application

·Ground/Wall indicator
·Architectural lighting
·Entertainment lighting
·City beautification
·Landscape lighting
·Signage/sign board

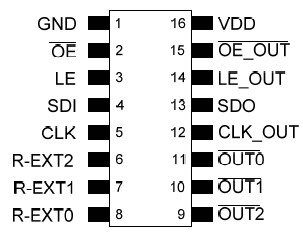

Pinout

Connection Diagram

Specifications

Characteristic	Symbol	Rating	Unit
Supply Voltage	V_DD	5~12	V
Input Voltage	V_IN	-0.4~V_DD + 0.4	V
Output Current	I_OUT	+60	mA
Output Voltage	V_DS	-0.5~+12.0	V
GND Terminal Current	I_GND	180	mA
Operating Temperature	T_opr	-40~+85	°C
Storage Temperature	T_stg	-55~+150	°C
