Product Details

Description

Features:

1. CPU
• 32-bit RISC (FR30) , load/store architecture, 5-level pipeline
• Multi-purpose register : 32 bits ´ 16
• 16-bit fixed length instructions (basic instructions) , 1 instruction per cycle
• Instructions for barrel shift, bit processing and inter-memory transfers : Instructions suited to loading purposes
• Function entry / exit instruction, multi load / store instruction of register details : High-level language handling
instruction
• Register interlock function : Simplification of assembler description
• Branch instruction with delay slot : Reduction in overheads in case of branching
• Signed 32-bit multiplication : 5 cycles
• Signed 16-bit multiplication : 3 cycles
• Interruption (saving PC and PS) : 6 cycles, 16 priority levels
2. Bus Interface
• 24-bit address output, 8/16-bit data input/output
• Basic bus cycle : 2 clock cycles
• Interface support for various memories
• Unused data and address pins can be used as input/output ports.
• Supports "little endian" mode
3. Built-in ROM
Mask device : 254 KB; FLASH device : 254 KB; EVA-FLASH device : 254 KB
4. Built-in RAM
Mask device : 8 KB; FLASH device : 8 KB; EVA-FLASH device : 8 KB
5. DMA Controller
This is a descriptor-type MA controller whose transfer parameters are arranged in the main memory.
A maximum of 8 factors in total (internal and external) can be transferred.
External factors are 3 channels.
6. Bit Search Module
Searches the first "1" / "0" change bit positions within 1 cycle from MSB in 1 word
7. Timer
• 16-bit reload timer ´ 5 channels
• 16-bit OCU ´ 8 channels, ICU ´ 4 channels, free-run timer ´ 1 channel
Output waveform adjusting function for AC motor waveforms is included in the above timer.
• 8/16-bit up/down timer/counter (8-bit ´ 2 channels or 16-bit ´ 1 channel)
External interruption and pin are shared for AIN and BIN.
• 16-bit down count timer ´ 5 channels; can also be used as the UART baud rate timer
• 16-bit PPG timer ´ 6 channels; out-pulse cycle / duty can be changed at random
8. D/A Converter
• 8-bit ´ 3 channels
9. A/D Converter (Sequential comparison type)
• 10-bit ´ 8 channels
• Sequential conversion method (conversion time 5.0 ms at 33 MHz)
• Setting for single conversion, scan conversion and repeat conversion is possible.
• Conversion starting function using hardware or software
10. Serial I/O
• UART ´ 5 channels; clock synchronous serial transfer with LSB / MSB switching function is possible for both.
• Serial data output or serial lock output can be selected using push-pull / open-drain software.
11. Level Comparator Input
• 1 channel; shared input and pins of A/D converter.
7. Timer
• 16-bit reload timer ´ 5 channels
• 16-bit OCU ´ 8 channels, ICU ´ 4 channels, free-run timer ´ 1 channel
Output waveform adjusting function for AC motor waveforms is included in the above timer.
• 8/16-bit up/down timer/counter (8-bit ´ 2 channels or 16-bit ´ 1 channel)
External interruption and pin are shared for AIN and BIN.
• 16-bit down count timer ´ 5 channels; can also be used as the UART baud rate timer
• 16-bit PPG timer ´ 6 channels; out-pulse cycle / duty can be changed at random
8. D/A Converter
• 8-bit ´ 3 channels
9. A/D Converter (Sequential comparison type)
• 10-bit ´ 8 channels
• Sequential conversion method (conversion time 5.0 ms at 33 MHz)
• Setting for single conversion, scan conversion and repeat conversion is possible.
• Conversion starting function using hardware or software
10. Serial I/O
• UART ´ 5 channels; clock synchronous serial transfer with LSB / MSB switching function is possible for both.
• Serial data output or serial lock output can be selected using push-pull / open-drain software. 11. Level Comparator Input
• 1 channel; shared input and pins of A/D converter.

Pinout

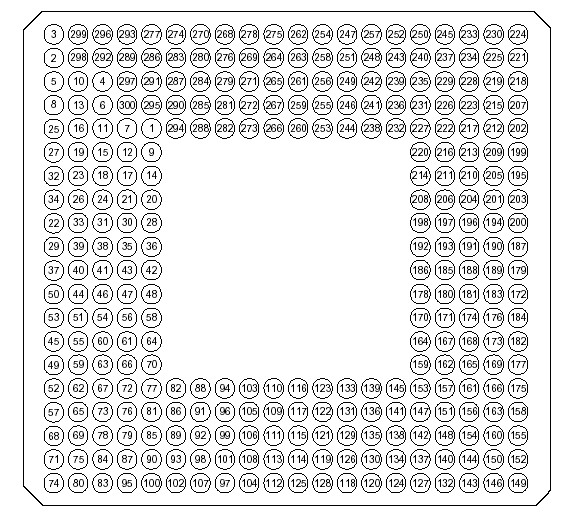

Connection Diagram

Specifications

Parameter	Symbol	Rating		Unit	Remarks
Parameter	Symbol	Min	Max	Unit	Remarks
Power supply voltage	VCC	VSS - 0.3	VSS + 4.0	V
Input voltage	VI	VSS - 0.3	VCC + 0.3	V
Output voltage	VO	VSS - 0.3	VCC + 0.3	V
Maximum clamp current	ICLAMP	VSS - 0.3	+ 2.0	mA	*4
Total maximum clamp current	\| ICLAMP \|	VSS - 0.3	20	mA	*4
"L" level maximum output current	IOL	VSS - 0.3	10	mA	*1
"L" level average output current	IOLAV	--	4	mA	*2
"L" level total maximum output current	SIOL	--	100	mA
"L" level total average output current	SIOLAV	--	50	mA	*3
"H" level maximum output current	IOH	--	- 10	mA	*1
"H" level average output current	IOHAV	--	- 4	mA	*2
"H" level total maximum output current	SIOH	--	- 50	mA
"H" level total average output current	SIOHAV	--	- 20	mA	*3
Power consumption	Pd	--	500	mW
Operating temperature	Ta	-30	+ 70	°C
Storage temperature	Tstg	-55	+ 150	°C

Description

The MB91133/MB91F133A, a standard single-chip microcontroller featuring various I/O resources and bus control mechanisms to incorporate the control required for high-performance high-speed CPU processes, is the core unit in the 32-bit RISC CPU (FR family) .

MB91F133A has the optimal specifications for incorporating applications that require high-performance CPU processing power by featuring peripheral I/O resources suitable for single-lens reflex cameras, digital video cameras, etc.
