Product Details

Description



Features:

• 32-bit RISC, load/store architecture with a five-stage pipeline
• Operating frequency : 40 MHz (Use of PLL : Oscillation 10 MHz)
• 16-bit fixed length instructions (basic instructions) , 1 instruction per cycle
• Embedded application optimized instructions : Memory-to-memory transfer, bit processing, barrel shift, and other instructions.
• High-level language support instructions : Function entry/exit instructions, multiple register load/store instructions.
• Register interlock functions: Facilitating coding in assemblers
• Built-in multiplier with instruction-level support
  32-bit multiplication with sign : 5 cycles
  16-bit multiplication with sign : 3 cycles


Pinout

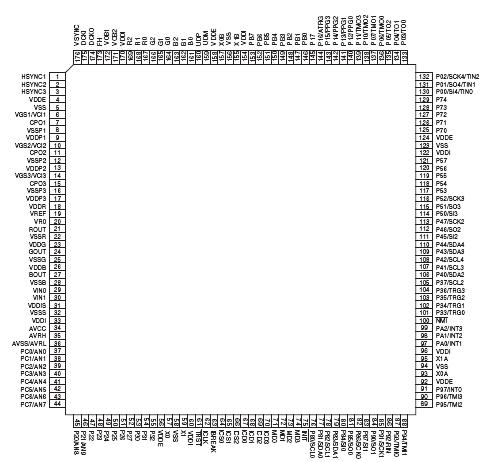

Connection Diagram


Specifications

Parameter Symbol Rating Unit
Min Max
Power supply voltage VDDE (3.3 V) VSS − 0.5 VSS + 4.0 V
VDDI (1.8 V) VSS − 0.3 VSS + 2.5
Analog power supply voltage AVCC VSS − 0.5 VSS + 4.0 V
Input voltage VI VSS − 0.5 VDDE + 0.5 V
Analog pin input voltage VIA VSS − 0.5 AVcc + 0.5 V
Output voltage VO VSS − 0.5 VCC + 0.5 V
Storage temperature Tstg − 40 + 125 °C



Description

The MB91319R series is the microcontrollers which use a high-performance 32-bit RISC-CPU and contains various types of I/O resources for the embedded control that requires high-performance and high-speed CPU processing.

It is suitable for the embedded control in TV or PDP, requiring high-performance CPU processing power. MB91270 is one of the FR60* family based on the FR30/40 family CPU with enhanced bus access. It is applicable to faster-speed application.
