MB91151A

Features: CPU• 32-bit RISC (FR30) , load/store architecture, 5-stage pipeline• General-purpose registers : 32 bits ´ 16• 16-bit fixed-length instructions (basic instructions) , 1 instruction/ 1 cycle• Memory-to-memory transfer, bit processing, barrel shift processing ...

product image

MB91151A Picture
See larger image
SeekIC No. : 004413908 Detail

MB91151A: Features: CPU• 32-bit RISC (FR30) , load/store architecture, 5-stage pipeline• General-purpose registers : 32 bits ´ 16• 16-bit fixed-length instructions (basic instructions)...

MB91151A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MB91151A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

CPU
• 32-bit RISC (FR30) , load/store architecture, 5-stage pipeline
• General-purpose registers : 32 bits ´ 16
• 16-bit fixed-length instructions (basic instructions) , 1 instruction/ 1 cycle
• Memory-to-memory transfer, bit processing, barrel shift processing : Optimized for embedded applications
• Function entrance/exit instructions, and multiple load/store instructions of register contents, instruction systems
supporting high level languages
• Register interlock functions, efficient assembly language description
• Branch instructions with delay slots : Reduced overhead time in branching executions
• Internal multiplier/supported at instruction level
Signed 32-bit multiplication : 5 cycles
Signed 16-bit multiplication : 3 cycles
• Interrupt (PC and PS saving) : 6 cycles, 16 priority levels
Bus Interface
• 16-bit address output, 8/16-bit data input and output
• Basic bus cycle : 2-clock cycle
• Support for interface for various types of memory
• Unused data/address pins can be configured as input/output ports
• Support for little endian mode
Internal RAM
Instruction RAM : 2 Kbytes
Data RAM : 32 Kbytes
DMAC
DMAC in descriptor format for placing transfer parameters on to the main memory.
Capable of transferring a maximum of eight internal and external factors combined.
Three channels for external factors
Bit Search Module
Searches in one cycle for the position of the bit that changes from the MSB in one word to the initial 1/0.
Timers
•16-bit OCU ´ 8 channels, ICU ´ 4 channels, Free-run timer ´ 1 channel
• 8/16-bit up/down timer/counter (8-bit ´ 2 channels or 16-bit ´ 1 channel)
• 16-bit PPG timer ´ 6 channels. The output pulse cycle and duty can be varied as desired.
• 16-bit reload timer ´ 4 channels
D/A Converter
• 8-bit ´ 3 channels
A/D Converter (Sequential Comparison Type)
• 10-bit ´ 8 channels
• Sequential conversion method (conversion time : 5.0 ms@33 MHz)
• Single conversion or scan conversion can be selected, and one-shot or continuous or stop conversion mode
can be set respectively.
• Conversion starting function by hardware/software.
Serial I/O
• UART´ 4 channels. Any of them is capable of serial transfer in sync with clock attached with the LSB/MSB
switching function.
• Serial data output and serial clock output are selectable by push-pull/open drain software.
• A 16-bit timer (U-timer) is contained as a dedicated baud rate generator allowing any baud rate to be generated.
Clock Switching Function
• Gear function : Operating clock ratios to the basic clock can be set independently for the CPU and peripherals
from four types, 1 : 1, 1 : 2, 1 : 4 or 1 : 8.
Interrupt Controller
External interrupt input (16 channels in total)
• Allows the rising edge/falling edge/H level/L level to be set.
Internal interrupt factors
• Interrupt by resources and delay interrupt
Others
• Reset cause : Power on reset/watchdog timer/software reset/external reset
• Low power consumption mode : Sleep/stop
• Package : 144-pin LQFP
• CMOS technology (0.35 mm)
• Power supply voltage : 3.15 V to 3.6 V

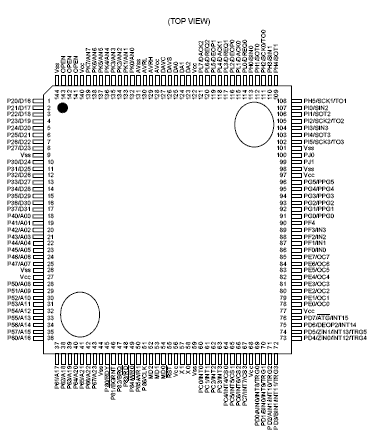

Pinout

Connection Diagram


Specifications

Connection Diagram


Description

The MB91151A is a single-chip microcontroller using a 32-bit RISC-CPU (FR30 family) as its core.
