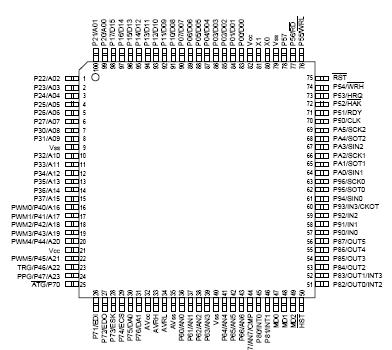

MB90V230

The MB90V230 series is a member of general-purpose, 16-bit microcontrollers designed for those applications which require high-speed realtimeprocessing, proving to be suitable for various industrial machines, camera and video devices, OA equipment, and for process control. The CPU used in this series is the F2MC*-16F. The instruction set for the F2MC-16F CPU core is designed to be optimized for controller applications while inheriting the AT architecture of the F2MC-16/16H series, allowing a wide range of control tasks to be processed efficiently at high speed.

The peripheral resources integrated in the MB90V230 series include: the UART (clock asynchronous/synchronous transfer) ´ 1 channel, the extended serial I/O interface ´ 1 channel, the A/D converter (8/10-bit precision) ´ 8 channels, the D/A converter (8-bit precision) ´ 2 channels, the level comparator ´ 1 channel, the external interrupt input ´ 4 lines, the 8-bit PPG timer (PWM/single-shot function) ´ 1 channel, the 8-bit PWM controller ´ 6 channels, the 16-bit free run timer ´ 1 channel, the input capture unit ´ 4 channels, the output compare unit ´ 6 channels, and the serial E2PROM interface.
