MB90641A

Features:

F2MC-16L CPU
• Minimum instruction execution time: 58.8 ns/4.25 MHz oscillation (Uses PLL clock multiplication),maximum multiplier = 4
• Instruction set optimized for controller applications
   Upward object code compatibility with F2MC-16 (H)
   Wide range of data types (bit/byte/word/long word)
   Improved instruction cycles provide increased speed
   Additional addressing modes: 23 modes
   High code efficiency
   Access methods (bank access/linear pointer)
   Enhanced multiplication and division instructions (signed instructions added)
   High precision operations are enhanced by use of a 32-bit accumulator
   Extended intelligent I/O service (access area extended to 64 Kbytes)
   Maximum memory space: 16 Mbytes
• Enhanced high level language (C)/multitasking support instructions
   Use of a system stack pointer
   Enhanced pointer indirect instructions
   Barrel shift instructions
   Stack check function
• Improved execution speed: Four byte instruction queue
• Powerful interrupt function
• Automatic data transfer function (does not use instructions)

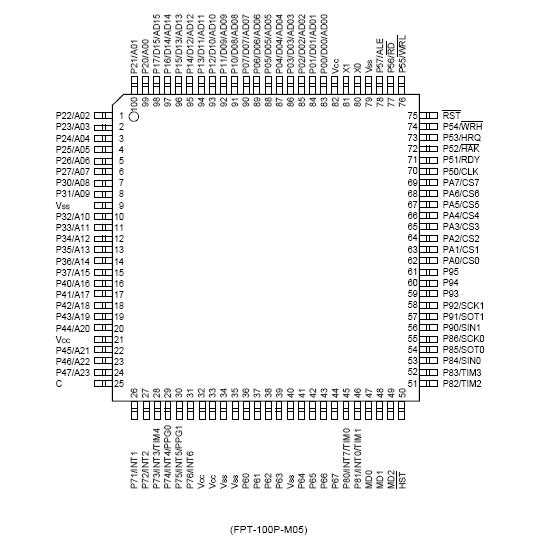

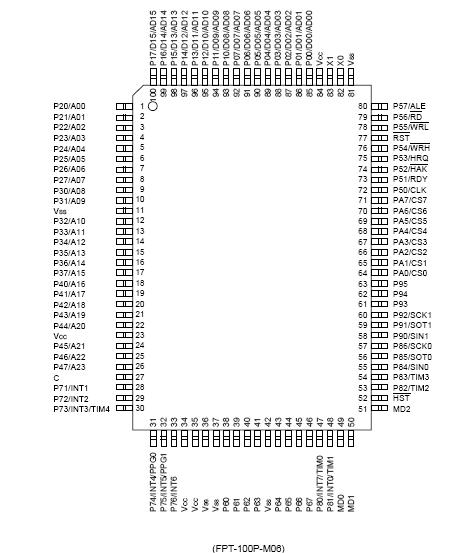

Pinout




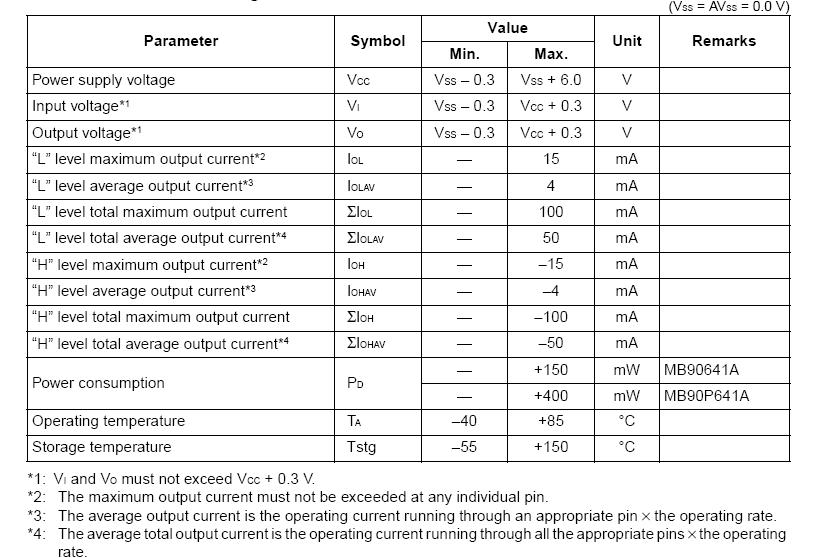

Specifications




Description

MB90641A series includes 16-bit microcontrollers optimally suitable for process control in a wide variety of industrial and OA equipment. The series uses the F2MC*-16L CPU which is based on the F2MC-16 but with enhanced high-level language and task switching instructions and additional addressing modes.
MB90641A consist of a 2-channel serial port incorporating a UART function (and supporting I/O expansion serial mode), 8/16-bit 2-channel PPG, 5-channel 16-bit reload timer, 8-channel chip select function, and 8-channel DTP/external interrupts.
Also, multiplexed or non-multiplexed operation can be selected for the address/data bus.
*: F2MC stands for FUJITSU Flexible Microcontroller.
