Product Details

Description

Features:

• 16-bit input capture (4 channels)
   Detects rising, falling, or both edges.
   16-bit capture register × 4
   Pin input edge detection latches the 16-bit free-run timer counter value, and generates an interrupt request.
• 16-bit reload timer (2 channels)
   16-bit reload timer operation (select toggle output or one-shot output)
   Event count function selection provided

Pinout

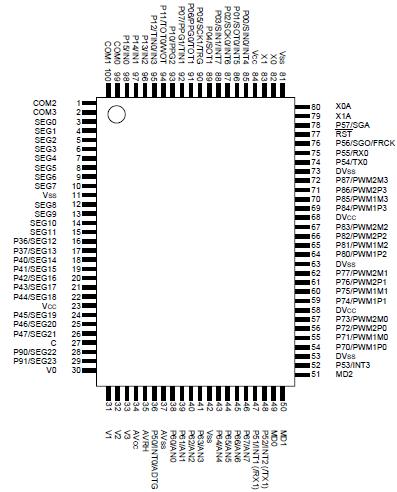

Connection Diagram

Specifications

Parameter	Symbol	Rating		Unit	Remarks
Parameter	Symbol	Min	Max	Unit	Remarks
Power supply voltage	V_CC	V_SS - 0.3	V_SS + 6.0	V
	AV_CC	V_SS- 0.3	V_SS + 6.0	V	AV_CC= V_CC^*1
	AVRH	V_SS - 0.3	V_SS + 6.0	V	AV_CC AVRH
	DV_CC	V_SS- 0.3	V_SS + 6.0	V	DV_CC = V_CC^*1
Input voltage	V_I	V_SS - 0.3	V_CC + 0.3	V
Output voltage	V_O	V_SS- 0.3	V_CC+ 0.3	V
Maximum clamp current	I_CLAMP	- 400	+ 400	A	*5
Total maximum clamp current	\| I_CLAMP \|	-	4	mA	*5
"L"level maximum output current*2	I_OL1	-	15	mA	Other than P70-P77, P80-P87
"L"level maximum output current*2	I_OL2	-	40	mA	P70-77, P80-87
"L"level average output current*3	I_OLAV1	-	4	mA	Other than P70-P77, P80-P87
"L"level average output current*3	I_OLAV2	-	30	mA	P70-77, P80-87
"L"level maximum total output current	I_OL1	-	100	mA	Other than P70-P77, P80-P87
"L"level maximum total output current	I_OL2	-	300	mA	P70-77, P80-87
"L"level average total output current	I_OLAV1	-	50	mA	Other than P70-P77, P80-P87
"L"level average total output current	I_OLAV2	-	250	mA	P70-77, P80-87
"H"level maximum output current	I_OH1*²	-	-15	mA	Other than P70-P77, P80-P87
"H"level maximum output current	I_OH2^*2	-	-40	mA	P70-77, P80-87
"H"level average output current	I_OHAV1^*3	-	-4	mA	Other than P70-P77, P80-P87
"H"level average output current	I_OHAV2^*3	-	-30	mA	P70-77, P80-87
"H"level maximum total output current	I_OH1	-	-100	mA	Other than P70-P77, P80-P87
"H"level maximum total output current	I_OH2	-	-330	mA	P70-77, P80-87
"H"level average total output current	I_OHAV1^*4	-	-50	mA	Other than P70-P77, P80-P87
"H"level average total output current	SI_OHAV2^*4	-	-250	mA	P70-77, P80-87
Power consumption	P_D	-	500	mW
Operating temperature	T_A	-40	+105	°C
Storage temperature	T_STG	-55	+150	°C

*1 : AV_CC, AVRH and DV_CC shall never exceed V_CC. Also, AVRH shall never exceed AV_CC.

*2 : Maximum output current is defined as the peak value of the current of any one of the corresponding pins.

*3 : Average output current is defined as the value of the average current flowing over 100 ms at any one of the corresponding pins. The "average value" can be calculated from the formula of "operating current" times "operating factor".

*4 : Average total output current is defined as the value of the average current flowing over 100 ms at all of the corresponding pins. The "average value" can be calculated from the formula of "operating current" times " operating factor".

Description

The FUJITSU MB90420G/425G Series is a 16-bit general purpose high-capacity microcontroller designed for vehicle meter control applications etc.

The instruction set retains the same AT architecture as the FUJITSU original F2MC-8L and F2MC-16L series, with further refinements including high-level language instructions, expanded addressing mode, enhanced (signed) multipler-divider computation and bit processing.

In addition, a 32-bit accumulator MB90420G is built in to enable long word processing.
