MB90242A

Features: • F2MC-16F CPUMinimum execution time: 62.5 ns (32 MHz oscillation: 5.0 V±10%)Instruction set optimized for controller applicationsImproved instruction set applicable to high-level language (C) and multitaskingImproved execution speed: 8-byte queuePowerful interrupt fuctions (interr...

product image

MB90242A Picture
See larger image
SeekIC No. : 004413824 Detail

MB90242A: Features: • F2MC-16F CPUMinimum execution time: 62.5 ns (32 MHz oscillation: 5.0 V±10%)Instruction set optimized for controller applicationsImproved instruction set applicable to high-level la...

MB90242A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MB90242A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• F2MC-16F CPU
Minimum execution time: 62.5 ns (32 MHz oscillation: 5.0 V±10%)
Instruction set optimized for controller applications
Improved instruction set applicable to high-level language (C) and multitasking
Improved execution speed: 8-byte queue
Powerful interrupt fuctions (interrupt processing time: 1.0s 32 MHz oscillation)
Automatic transfer function independent of instructions
Extended intelligent I/O Service


Pinout

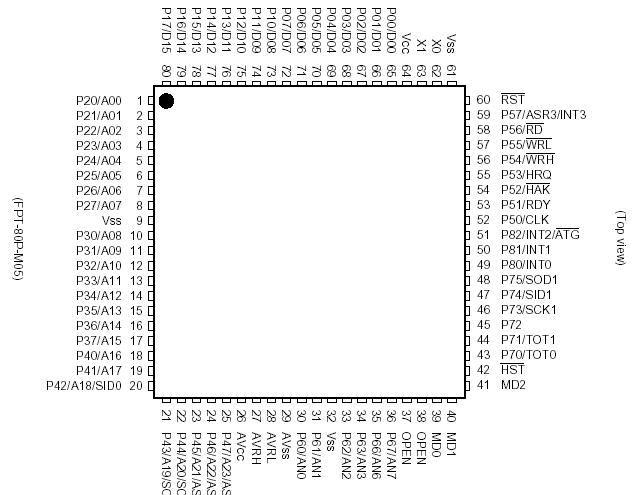

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
Remarks
Min.
Max.
Power supply voltage
VCC
AVCC
VSS 0.3
VCC 0.3
VSS + 7.0
VCC + 7.0
V
V

Input voltage
VI*
VSS 0.3
VCC + 0.3
V
V

Output voltage
VO*
VSS 0.3
VCC + 0.3
V

"L" level output current
IOL
-
10
mA

"L" level average output current
IOLAV
-
4
mA

"L" level average output current
IOLAV
-
50
mA

"H" level output current
IOH
-
10
mA

"H" level average output current
IOHAV
-
4
mA

"H" level total average output
current
IOHAV
-
-48
mA

Power consumption
PD
-
600
mW

Operating temperature
TA
30
+70
°C
Storage temperature
Tstg
55
+150
°C
* : VIand VOmust not exceed VCC+ 0.3 V.
WARNING:
Semiconductor devices can be permanently damaged by application of stress (voltage, current, temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.


Description

The MB90242A is a 16-bit microcontroller optimized for "mechatronics" control applications such as hard disk drive unit control.

The instruction set is based on the AT architecture of the F 2 MC*-16, 16H family, with additional high-level language supporting instruction, expanded addressing modes, enhanced multiplication and division instructions, and improved bit processing instructions. In addition, long-word data can now be processed due to the inclusion of a 32-bit accumulator.

The MB90242A has a multiply/accumulate unit as a peripheral resource, allowing easy realization of digital filters such as IIR or FIR. The MB90242A has abundant embedded peripheral features, such as 6-channel 8/ 10-bit A/D converter, UART, 2-channel + 1-channel timer, 4-channel input capture and 4-channel external interrupt.

*1: F 2 MC stands for FUJITSU Flexible Microcontroller.
