Features:

• Functions Maximum conversion speed: 60 MSPS max.
  Current output mode
  Output current adjusted by external resistor
  Pedestal insertion
  Power-down function
  On-chip reference power supply (External reference power supply can be used.)
• Conversion
• Supply voltage Single +5 V supply
• Current consumption Typical stage: 500 mW
  Power-down mode: 20 mW max.


Pinout

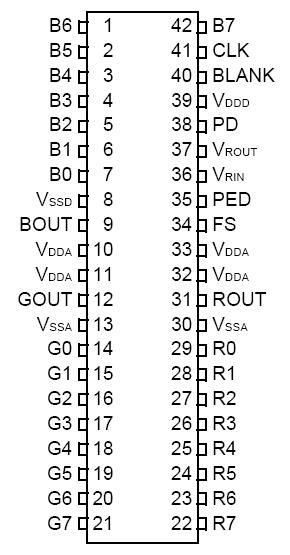

Connection Diagram


Specifications

Parameter SYMBOL RATINGS Units
Power supply voltage VDD * 0.3 to +7.0 V
Analog power supply current IDDA 10 to +200 mA
Analog ground current ISSA 10 to +50 mA
Digital supply current IDDD 200 to +10 mA
Digital ground current ISSD 10 to +50 mA
Analog output current IO 10 to +30 mA
Digital input/output current II/O 10 to +10 mA
Input/output voltage VI/O 0.3 to VDD +0.3 V
Storage temperature TSTG 40 to +125 °C
Note: Permanent device damage may occur if the above ABSOLUTE MAXIMUM RATINGS are exceeded.
Functional operation should be restricted to the conditions as detailed in the operational sections of this data
sheet. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.


Description

The MB86029 is a 3-channel high-speed CMOS 8-bit D/A converter for TV and VCR application. The MB86029 features on-chip voltage reference, pedestal insertion, and power-down circuits, and a maximum conversion speed of 60 MSPS for digital TV and graphic display application.
