MB84VD22290FA-70

Features: • Power Supply Voltage of 2.7 V to 3.1 V• High Performance-70 ns maximum access time (Flash)-70 ns maximum access time (SRAM)• Operating Temperature 30°C to +85°C• Package 59-ball FBGAPinoutSpecifications Parameter Conditions Rating Units Min ...

product image

MB84VD22290FA-70 Picture
See larger image
SeekIC No. : 004413534 Detail

MB84VD22290FA-70: Features: • Power Supply Voltage of 2.7 V to 3.1 V• High Performance-70 ns maximum access time (Flash)-70 ns maximum access time (SRAM)• Operating Temperature 30°C to +85°C• ...

MB84VD22290FA-70 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MB84VD22290FA-70
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Power Supply Voltage of 2.7 V to 3.1 V
• High Performance
-70 ns maximum access time (Flash)
-70 ns maximum access time (SRAM)
• Operating Temperature  30°C to +85°C
• Package 59-ball FBGA


Pinout

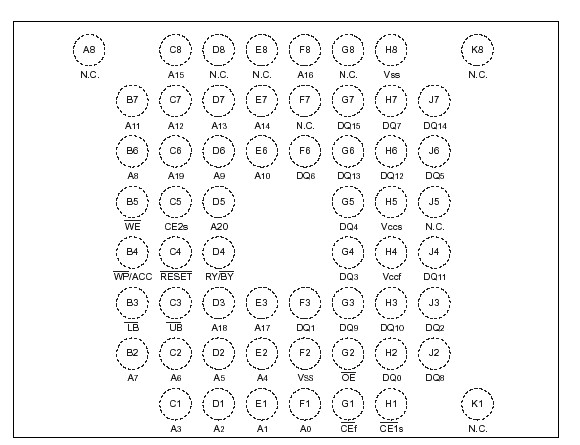

Connection Diagram


Specifications

Parameter
Conditions
Rating
Units
Min
Max
Storage Temperature
Tstg
55
+125
°C
Ambient Temperature with Power Applied
TA
30
+85
°C
Voltage with Respect to Ground All Pins except
A9, OE,RESET *1, *2
VIN, VOUT
0.3
VCCf+0.3
Vccs+0.4
V
Supply Voltage *1
Vccf Vccs
0.3
+3.3
V
RESET *2
VIN
0.5
+13.0
V
WP/ACC *3
VACC
0.5
+10.5
V
