MB84VD2118XEM-70

Features: • Power Supply Voltage of 2.7 V to 3.3 V• High Performance-70 ns maximum access time (Flash)-70 ns maximum access time (SRAM)• Operating Temperature 40 °C to +85 °C• Package 56-ball FBGAPinoutSpecifications Parameter Conditions Rating Units Min ...

product image

MB84VD2118XEM-70 Picture
SeekIC No. : 004413509 Detail

MB84VD2118XEM-70: Features: • Power Supply Voltage of 2.7 V to 3.3 V• High Performance-70 ns maximum access time (Flash)-70 ns maximum access time (SRAM)• Operating Temperature 40 °C to +85 °C•...

floor Price/Ceiling Price

Part Number:
MB84VD2118XEM-70
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Power Supply Voltage of 2.7 V to 3.3 V
• High Performance
-70 ns maximum access time (Flash)
-70 ns maximum access time (SRAM)
• Operating Temperature  40 °C to +85 °C
• Package 56-ball FBGA



Pinout

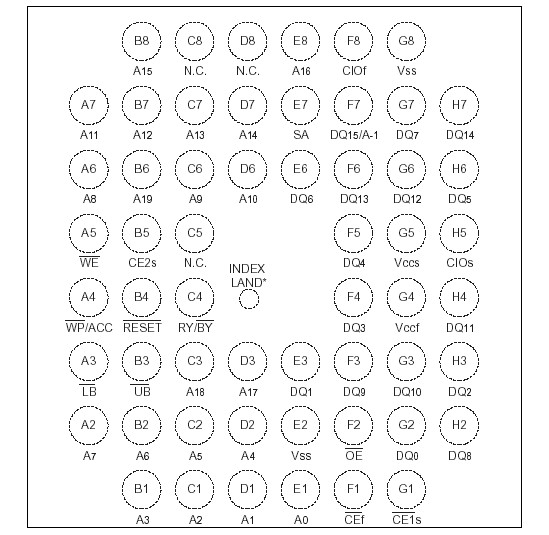

  Connection Diagram


Specifications

Parameter
Conditions
Rating
Units
Min
Max
Storage Temperature
Tstg
55
+125
°C
Ambient Temperature with Power Applied
TA
40
+85
°C
Voltage with Respect to Ground All Pins except
A9, OE, RESET *1, *2
VIN, VOUT
0.3
VCC+0.4
V
Power Supply Voltage *1
VCC
0.3
+4.0
V
RESET *2
VIN
0.5
+13.0
V
WP/ACC *3
VACC
0.5
+10.0
V
