MB81E161622-10/-12

Features: • Single +3.3 V Supply ±0.3 V tolerance• LVTTL compatible I/O interface• Two-bank operation• Programmable burst type, burst length, and CAS latency• 4 K refresh cycles every 64 ms• Auto- and Self-refresh• CKE power down mode• Output Enable ...

product image

MB81E161622-10/-12 Picture
See larger image
SeekIC No. : 004413444 Detail

MB81E161622-10/-12: Features: • Single +3.3 V Supply ±0.3 V tolerance• LVTTL compatible I/O interface• Two-bank operation• Programmable burst type, burst length, and CAS latency• 4 K refre...

MB81E161622-10/-12 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MB81E161622-10/-12
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single +3.3 V Supply ±0.3 V tolerance
• LVTTL compatible I/O interface
• Two-bank operation
• Programmable burst type, burst length, and CAS latency
• 4 K refresh cycles every 64 ms
• Auto- and Self-refresh
• CKE power down mode
• Output Enable and Input Data Mask

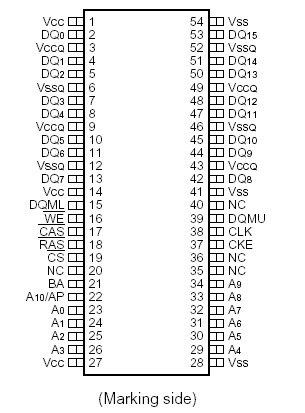

Pinout

Connection Diagram


Specifications

Parameter
Conditions
Rating
Units
Min
Max
Voltage of VCCQ Supply Relative to VSS
VCCQ
0.5
to+4.6
V
Voltage at Any Pin Relative to VSS
VIN, VOUT
0.5
to+4.6
V
Short Circuit Output Current
IOUT
50
to+50
mA
Power Dissipation
PD
--
1.3
W
Storage Temperature
TSTG
55
to+125
°C



Description

The Fujitsu MB81E161622-10/-12 is a Fast Cycle Random Access Memory (FCRAM*) containing 16,777,216 memory cells accessible in a 16-bit format. The MB81E161622-10/-12 features a fully synchronous operation referenced to a positive edge clock, whereby all operations are synchronized at a clock input which enables high performance and simple user interface coexistence.

The MB81E161622-10/-12 is utilized using a Fujitsu advanced FCRAM core technology and designed to improve the random access performance and the complexity of controlling regular synchronous DRAM (SDRAM) which require many wait state due to long latency constraints.

The MB81E161622-10/-12 is ideally suited for various embedded/consumer applications including digital AVs, printers and file storage where a large band width memory is needed.
