Product Details

Description



Features:

• Not required compensation
• Wide power supply voltage range
   Single power supply: 3 V to 30 V
   Dual power supplies: ±1.5 V to ±15 V
• Wide output voltage range
• No cross-over distortion
• Fast slew rate 2 V/s typ.

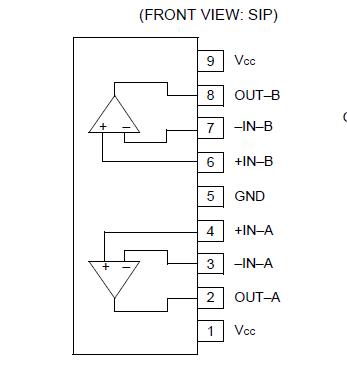

Pinout

Connection Diagram


Specifications


                                                                                                         (TA = 25°C)
Rating Symbol Value Unit
Power Supply Voltage VCC 36 V
Differential Input Voltage VID 36 V
Common-mode Input Voltage VICM 0.3 to +36 V
Power Dissipation PD 350 (TA55°C) mW
Operating Temperature TA 20 to +75 °C
Storage Temperature TSTG -55 to +125 °C
NOTE: Permanent device damage may occur if the above Absolute Maximum Ratings are exceeded. Functional
           operation should be restricted to the conditions as detailed in the operational sections of this data sheet.
           Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
