MB4204

Features: • Wide power supply voltage range: +2 to +36V• Wide input common mode range: 0 to (VCC 1.5) V• Low power supply current: 0.8 mA typ.• Low input offset voltage: 2 mV typ.• Low input bias current: 25 nA typ.• Open Collectors Output allow to wired-OR Con...

product image

MB4204 Picture
See larger image
SeekIC No. : 004413390 Detail

MB4204: Features: • Wide power supply voltage range: +2 to +36V• Wide input common mode range: 0 to (VCC 1.5) V• Low power supply current: 0.8 mA typ.• Low input offset voltage: 2 m...

MB4204 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MB4204
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Wide power supply voltage range: +2 to +36V
• Wide input common mode range: 0 to (VCC 1.5) V
• Low power supply current: 0.8 mA typ.
• Low input offset voltage: 2 mV typ.
• Low input bias current: 25 nA typ.
• Open Collectors Output allow to wired-OR Connection
• Package
  -14-pin Plastic DIP Package (Suffix: P)
  -14-pin Plastic FPT Package (Suffix: PF)


Pinout

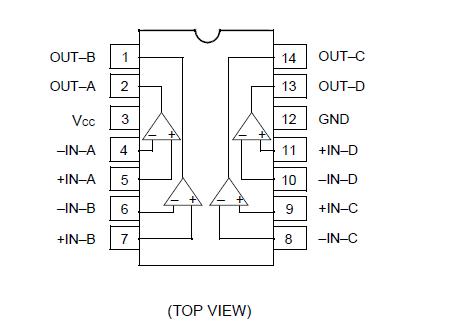

Connection Diagram


Specifications


                                                                                                              (TA = 25°C)
Rating Symbol Value Unit
Power Supply Voltage VCC 36 V
Power Dissipation PD 500 mW
Differential Input Voltage VID 36 V
Common Mode Input Voltage VI 0.3 to +36 V
Output Short Circuit Duration - Infinite -
Operating Temperature TA 20 to +75 °C
Storage Temperature TSTG -55 to +125 °C
NOTE: Permanent device damage may occur if the above Absolute Maximum Ratings are exceeded. Functional
           operation should be restricted to the conditions as detailed in the operational sections of this data sheet.
           Exposure to absolute maximum rating conditions for extended periods may affect device reliability.


Description

The Fujitsu MB4204 is a Quad Comparator which consists of four independent channels. The MB4204 is designed to operate form either a single power or dual power supplies over a wide range of voltages. The input characteristics is equivalent of current industry standard comparator. Even though operated from a single power supply, the MB4204 is suitably designed to compare multiple signals in parallel and to be operated with battery because its input common mode voltage range includes ground potential and it requires low power supply current.

The MB4204 can be high density mounted because it integrates 4 circuits on a chip in DIP/FPT-14-pin package.

The MB4204 is pin compatible with LM339.
