Features:

• Resolution                                                 : 10 bits
• Linearity error                                           : ±1.5 LSB (max)
• Differential linearity error                          : ±1.0 LSB (max)
• Maximum conversion rate                         : 85 MSPS (min)
• Supply voltage                                          : single +5 V
• Digital input voltage range                       : TTL level
• Analog output voltage range                   : 2 Vp-p (0 to 2V: analog output for RL = 200 , RREF = 3.3 k, VRIN = 2V)
                                                                   : 1 Vp-p (0 to 1V: analog output for RL = 75 , RREF = 2.4 k, VRIN = 2V)
• Dissipation power                                    : 240 mW (standard: analog output for RL = 200 , 2 Vp-p output)
                                                                   : 310 mW (standard: analog output for RL = 75 W, 1 Vp-p output)
• Additional capabilities                              : Power saving function, independent 3-ch VREF
• Package                                                   : LQFP64, QFP64


Pinout

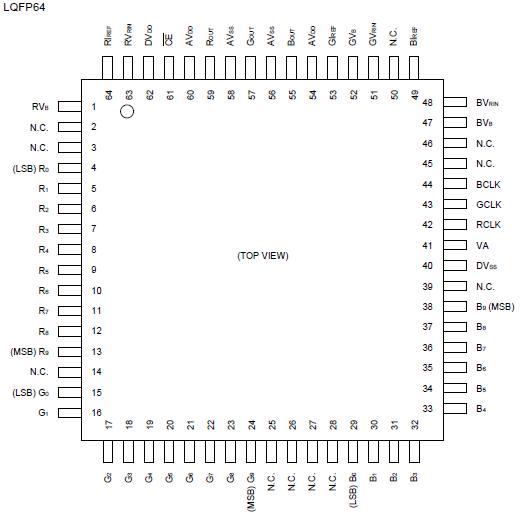

Connection Diagram


Specifications

Parameter Symbol Rating Unit
Min. Max.
Power supply voltage VDD 0.3 +7.0 V
Digital input voltage VID 0.3 VDD + 0.3 V
Analog output voltage VO 0.3 VDD + 0.3 V
Analog output current : LQFP64 IO 0 15 mA
: QFP64 0 30 mA
Storage temperature Plastic Tstg -55 +125 °C
WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current,
                  temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.


Description

The MB40C950V is a high-speed CMOS process-based D/A converter provided with the three-channel I/O for RGB, allowing for independent control of the three channels.
