MB40C568H

Features: • Resolution: 8 bits• Linearity error: ±0.20% (Typ.)• Maximum conversion rate: 30 MSPS (Min.)• Power supply voltage:Analog section +5.0 V Digital section +3.0 V or +5.0 V• Digital input voltage range: TTL level• Digital output voltage range: CMOS level...

product image

MB40C568H Picture
See larger image
SeekIC No. : 004413385 Detail

MB40C568H: Features: • Resolution: 8 bits• Linearity error: ±0.20% (Typ.)• Maximum conversion rate: 30 MSPS (Min.)• Power supply voltage:Analog section +5.0 V Digital section +3.0 V or ...

MB40C568H Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MB40C568H
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Resolution: 8 bits
• Linearity error: ±0.20% (Typ.)
• Maximum conversion rate: 30 MSPS (Min.)
• Power supply voltage:Analog section +5.0 V
                                      Digital section +3.0 V or +5.0 V
• Digital input voltage range: TTL level
• Digital output voltage range: CMOS level compatible
• Analog input voltage range: 0.5 to 4 V (with 2 Vp-p)
• Analog input capacity: 15 pF (Typ.)
• Power consumption: 90 mW (Typical: @fCLK = 30 MHz, AVDD = 5 V, DVDD = 3 V)
                                    110 mW (Typical:@fCLK = 30 MHz, AVDD = DVDD = 5 V)
• Additional function: Reference voltage generator circuit: VREFT = 3 V, VREFB = 1 V
• Package options: SOP24, SSOP24


Pinout

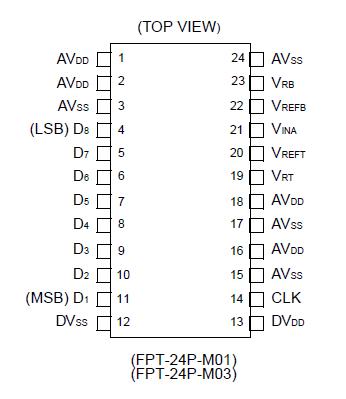

Connection Diagram


Specifications

Parameter Symbol Rating Unit
Min. Max.
Power supply voltage AVDD, DVDD 0.3 0.7 V
Input voltage CLK, VINA
VRT, VRB		 0.3 AVDD+0.3 V
Output voltage D1 to D8 0.3 DVDD+0.3 V
Storage temperature Tstg -55 +125 °C
WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current,
                  temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.


Description

The MB40C568H is a high-speed A/D converter using high-speed CMOS process technology
